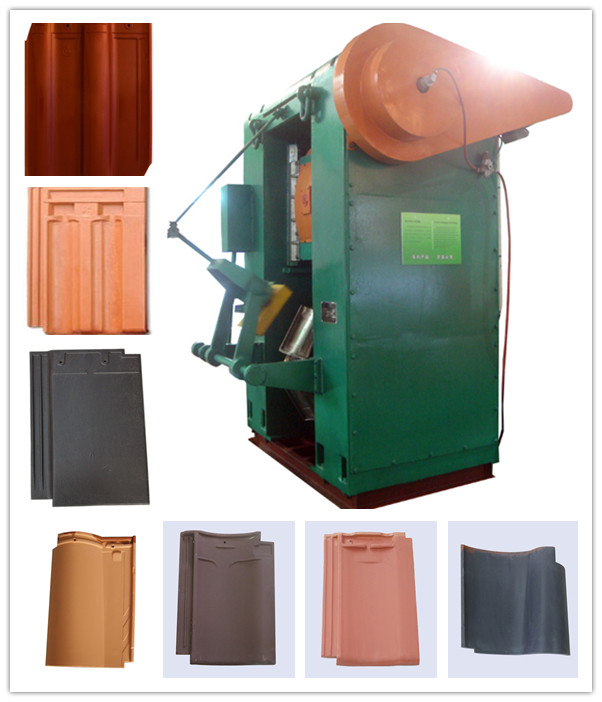

clay roof tile machine

WYJ100-1 fully automatic tile press which is the most advanced tile forming machine in the world at present, it equipped with 2 machine hand and special mould release device, double pressing make air removed fully.

WYJ100-1 fully auto clay roof tile machine featured of equipping with 6 press platforms, the platforms pressing in turn when the axis moves. The fully auto clay roof tile machine also characterized of compact structure, high capacity, stable performance.

It equipped with automatic feed manipulator and automatic discharge manipulator, make up a full automatic clay roofing tile production line with clay roofing tile extruder, automatic roofing tile cutting machine, conveyors, box feeder and other clay roof tile machines. The full-automation clay roofing tile production line can save large sum of labor cost.

For example, a daily output 25,000pcs clay roofing tile production line only need around 10 peoples. Auto clay roof tile machine main technical parameters Max.

Pressing Force kN 1000 Number of work platform set 6 Rotating speed RPM 2.5 Ideal capacity Piece 15 Size of platform mm 632×450 Over size mm 300x1880x3116 Motor power kW 7.5 Press Body Net Weight kg 7800
