clay brick machines is a Other Agriculture Products product. Key specs — Origin: China (Mainland).
Product Description

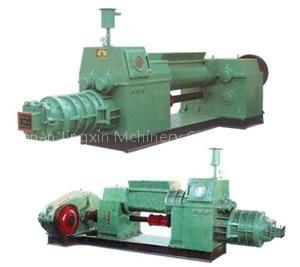

JX Series vacuum extruder are advanced twin-stage vacuum Brick Presses which draw lessons from the developed domestic, abroad experiences and design to making .The main frame is using of high quality steel, and reasonable structure, sturdy and durability, and strong applicability, high efficiency, easy maintenance but lower energy consumption . They are applicable for the production of high-rate hollow bricks with the materials of clay, coal gangue, shale, high-volume fly-ash, urban construction waste, gangue waste, inferior soil.
Specification model number Production ability
nbsp;Standard block/hr Motive power
（KW） Principal axis turning speed Feature size (mm)
JX60/60-4.0 12000-20000 75+200 28--40 7260×3800×3250
JX50/50-3.0 12000-16000 75+160 35--40 6300×1784×2000
JX45/45-2.5 10000-13000 55+90 40—45 35--40 6145×1784×2000
JKB40/40-2.0 8000-10000 45+75 40—45 35--40 6430×1450×1950
JX35/35-1.5 7000-9000 37+55 37 46 5230×1400×1850
