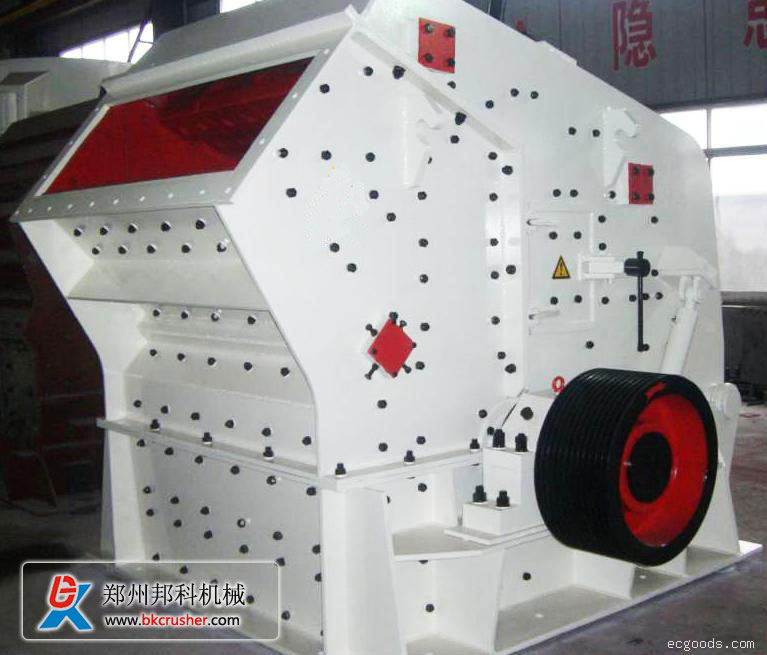

china ore Impact crusher(PF series)

china ore Impact crusher Application:
is widely used in mining, water conservancy, hydroelectric power highway and other relative industries to produce cubic shape of stone and sand. With unique structure design and technology, PF series impact crusher can crushing all kind of rocks with particle size does not exceed 500mm, compressive strength is no more than 350MPa.

China ore impact crusher Characteristics:
â–ºHammer is made of high chrome; liner board is made of wearable materials;
â–ºSpecially designed tooth impact plate;
â–ºMore suitable for crushing hard rock, high efficiency, low consumption;
â–ºFinal products is cubic, discharge opening is adjustable;
â–ºMake the crushing flow chart simple.

China ore Working Principle:
When the impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the impact crusher.

In order to give you a responsible quotation, you can inform us the following information:

1. What's the material you are going to deal with?
2. What's the granularity of the material?
3. What's the granularity of the final products are you going to achieve?
4. What's the producing capacity you are going to achieve?

Our engineers will suggest you the most suitable one for you according to your information.
