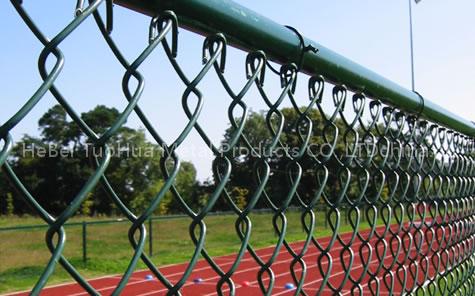

chain link fence

Chain link fencematerial :low corbon steel wire stailnless steel wire and PVC coated wire weave method characteristic:weave concision ,beauty and utility.
Usage: It is used for stadium purse net,the virescence belt protection mesh on the road,riverway fence ,residential safe fence,etc. Specifications:

mesh	1"	1.5"	2"	2.25"	2.4"	2.5"	3"	4"
	25mm	40mm	50mm	55mm	60mm	65mm	76mm	100mm
Wire diameter	18#7#
	1.20mm5.00mm
Length	1.0m50m
width	0.5m5.0m

Chain-link fence is simply a woven steel wire fence coated with zinc to prevent rust, commonly referred to as galvanized fence. There are two kinds of galvanized chain-link, GBW or GAW: galvanized before weaving (GBW) or galvanized after weaving (GAW). The vast majority on the market today is galvanized after weaving.
Color chain-link fence is sometimes called vinyl or color-coated. In this process, steel wire is first coated with zinc and then covered with a vinyl polymer coating that helps prevent rust and adds color. The vinyl is generally added to both the framework and the fabric of the fence. Some chain-link fence products use an aluminized coating to cover the steel in place of the zinc that creates a highly reflective finish. Regardless of the finish, all chain-link products offer a durable, economical fence system.

Here are the things to consider when selecting chain link your fence system: Primary Use - If the system is mainly used to accent your landscaping or define property boundaries, you may be able to use a lighter mesh than if you were containing pets or protecting property. Visual Aesthetics - If you desire a fence system that blends into the environment then you should consider a color coated system. Potential Stress - If their is the potential for climbing, or leaning (dogs) on the fence you may want to consider a heavier mesh than normal. Longevity - If the system is to remain for many years, be sure to consider the finish coating of the mesh. The color coated meshes have a long life expectancy, holding the appearance from day one throughout. Uses: Diamond mesh is used as fencing for sports field, river banks, construction and Especially, well suitable for a wide range of application, for example for enclosing Lawn, Road. Steel diamond mesh has a heavy galvanized coating to ensure a long life. Characteristic: strong; with wide application convenient instation lower price safe and flexible; does not break; Does not sag or roll up at the bottom

Fence Height cm	Fence Length(2m)					Fence Length(2.5m)
	Wire Gauge	Wire Diameter mm	Opening cm	Weight kg/piece	Fixing Pole	Opening cm	Weight kg/piece	Fixing Pole
					Weight kg/set			Weight kg/set
60	10#/8#	3.2 4	5X12	6.5	1.9	5X12	8.6	1.9
80	10#/8#	3.2 4	5X12	7.5	2.3	5X12	9.9	2.3
100	10#/8#	3.2 4	5X12	8.5	2.7	5X12	11.2	2.7
120	10#/8#	3.2 4	5X12	9	3.1	5X12	11.9	3.1
150	10#/8#	3.2 4	5X12	11	3.7	5X12	14.5	3.7
180	10#/8#	3.2 4	5X12	12.5	4.3	5X12	16.5	4.3
200	10#/8#	3.2 4	5X12	13.5	4.7	5X12	17.8	4.7
