ceramic fiber board
Specifications
- Brand
- LAUREL
- Origin
- qingdao china
- Price Term
- FOB
ceramic fiber board is a Ceramic Fiber Rope product. Key specs — Brand: LAUREL; Origin: qingdao china; Price Term: FOB.
Product Description

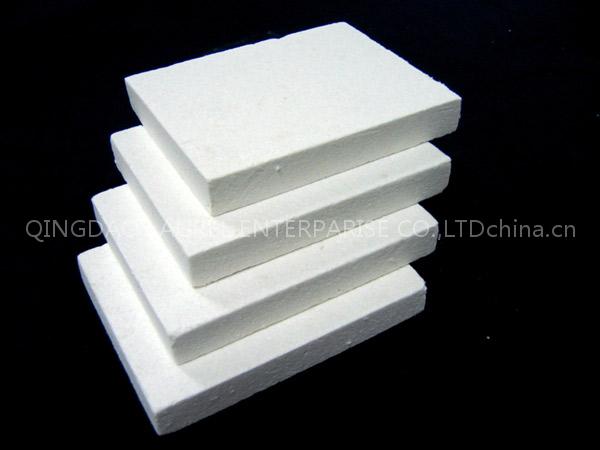

Ceramic fiber board
Low thermal conductivity
Low thermal capacity
Flexible and anti-tearing
Good electric/sound insulation
Features
thermal conductivity
thermal capacity
thermal shock resistance
4.Flexible and tearing resistance
asbestos and anti-corrosive
electric and sound insulation
mechanical working performance
thickness and density
Application
1.Industrial furnace wall lining
2.Masonry insulation
temperature furnace linling of the kiln
car furnace door baffle
5.Furnace temperature separation plate
temperature,high fever equipment insulation
7.Insulation IAF
8.Shipbuliding insulation
safety
10.Noise insulation
11.Available size:600*400*10-50mm,900*600*20-50mm,1200*1000*10-100mm
Common | Standard | Pure | High aluminium | Zirconium | ||
Classifition temperature(°C) | 1100 | 1260 | 1260 | 1360 | 1430 | |
Work temperature(°C) | ≤1000 | 1050 | 1100 | 1200 | 1350 | |
Color | White | Pure white | Pure white | Pure white | Pure white | |
Density(kg/m3) | 260 | 260 | 260 | 260 | 260 | |
Permanent linear shrinkage(%)(after24hours,density320kg/m3) | -4 | -3 | -3 | -3 | -3 | |
Thermal conductivity(w/m.k) density285kg/m3) | 0.085(400°C) | 0.085(400°C) | 0.085(400°C) | 0.085(400°C) | 0.085(400°C) | |
Compressive strength(Mpa)(thermal shrinkage 10%) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
Chemical composition (%) | AL2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
AL2O3+SIO2 | 96 | 97 | 99 | 99 | - | |
AL2O3+SIO2+Zro2 | - | - | - | - | 99 | |
Zro2 | - | - | - | - | 15-17 | |
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | |
Size(mm) | Common 600*400*10-50,900*600*20-50 | |||||
