ceramic capacitor

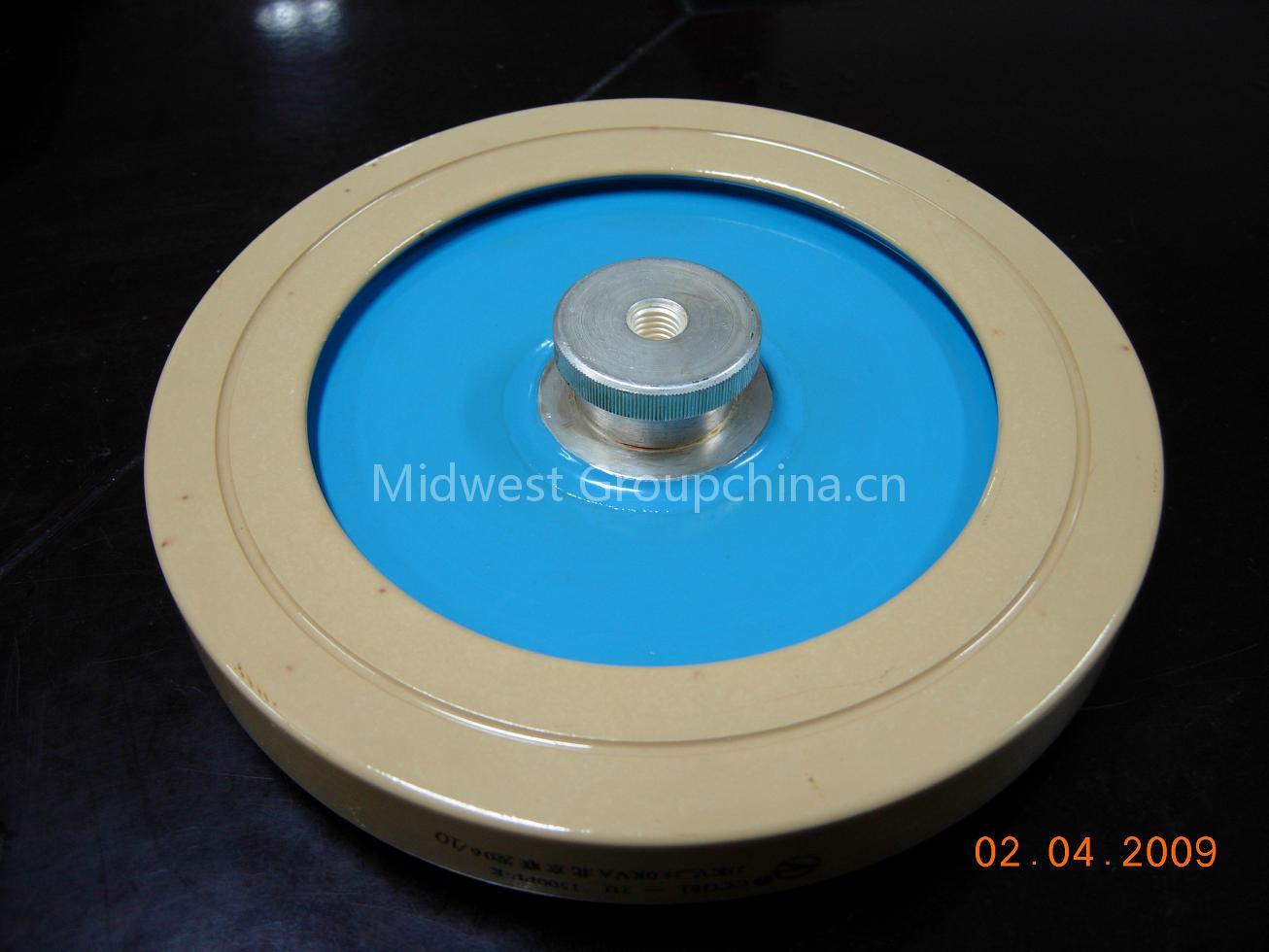

1, mic RF Power Capacitor, Used in the Tank Circuit of High-power RF Equipment CCG81-4 The capacitor is used for tank circuit coupling by-pass and feed circuit Specification:

CCG81-4-500PF:
Capacitance quality: 500pf Rating voltage: 25kV Test voltage: 37kV Reactive power: 90k Va CCG81-4-800PF:
Capacitance quality: 800pf Rating voltage: 25kV Test voltage: 37kV Reactive power: 90k Va
CCG81-4-1000PF:
Capacitance quality: 1000pf Rating voltage: 20kV Test voltage: 30kV Reactive power: 100k Va
CCG81-4-1500PF:
Capacitance quality: 1,500pf Rating voltage: 15kV Test voltage: 22kV Reactive power:90k Va
CCG81-4-2000PF:
Capacitance quality: 2000pf Rating voltage: 10kV Test voltage: 15kV Reactive power: 90k Va
Ceramic RF Power Capacitor, Used in the Tank Circuit of High Power RF Equipment CCG81-7-5000PF(PD200-5000PF) Can be equivalent to that of Vishay (Draloric), Morgan, High Energy Ceramic RF Power Capacitor model CCG81-7 is equivalent to that of PD200-5000PF
