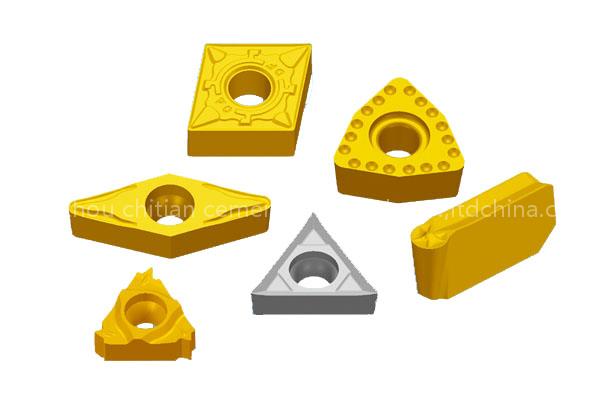

cemented carbide indexable insert
Specifications
- Origin
- Zhuzhou China
- Price Term
- EXW
Quick answer
cemented carbide indexable insert is a Other Farm Machines product. Key specs — Origin: Zhuzhou China; Price Term: EXW.
Product Description
| Grade | Density (g/cm3) | T.R.S (MPa) | Hardness (HRA) | Application | EquivalenttoISO |
| YG6 | 14.8 | ≥2150 | ≥89.5 | Suitableforthesemi-finishingandfinishingofnon-ferrousmetalsandnonmetallicmaterials, forfinishingmillingandfinishingmillingof continuoussectionsandforbroaching,etc. | K20 |
| YG6X | 14.8 | ≥1860 | ≥91.7 | Suitableformachiningchilledalloy,castiron andheatresistantalloywithgoodperformance. Itisalsosuitableforthefinishingofnormalcast iron. | K10 |
| YG8 | 14.8 | ≥2060 | ≥89.7 | Suitablefortheintermittentroughturning,planing andmillingofunevensurfacesofnon-ferrousmetalsandnonmetallicmaterials. Anditisalsousedfordrillingofnormalholesand depthholesandforbroaching. | K30 |
| YT5 | 13.2 | ≥1560 | ≥89.5 | Suitablefortheheavydutyroughturningof steelandcaststeelwithabigfeedrateata mediumandlowspeedunderunfavorable workingconditions. | P30 |
| YT14 | 13 | ≥1400 | ≥90.5 | Suitableforthefinishingandsemifinishingof steelandcaststeel. | P20 |
| YT15 | 13.1 | ≥1300 | ≥91.0 | Suitableforthefinishingandsemifinishingof steelandcaststeelwithamoderatefeedrate andaratherhighcuttingspeed. | P10 |
| YS8 | 13.9 | ≥1720 | ≥92.5 | Itcanbeusedforthefinishingofironbased andnickelbasedhigh-temeraturealloysandhighstrengthsteeland itcanbealsousedforthefinishingofchilled castiron,heatresistantstainlesssteel,high manganesesteelandhardenedsteel. | M05 |
| YC30S | 13.8 | ≥1600 | ≥90.0 | Usedforthemillingofsteelandcastiron, withhighperformanceofcrack-resistanceandtoughness. | P30 |
