1 . The electrical control system of whole machine is equipped with PLC system, operated in graphical interface, which with the functions of random signal analysis, failure diagnosis and the parameters setting, guarantee the best running of machine.

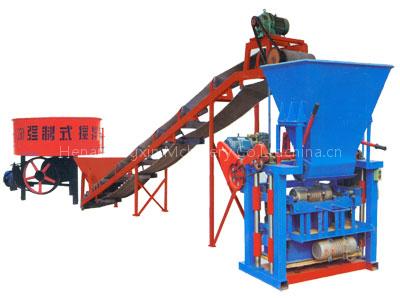

2. 6-15 Type Block Making Machine equipped with telecommunication control system to make great convenience in monitoring in other place, fault diagnosis and system upgrade.

3. Material storing & distributing unit: adopt closed type belt conveyer prevent the concrete from fluidity in advance owing to the influence ofaftershocks,guarantee products molding smoothly and the high quality.

JX6-15

Forming number 390×190×53 36pieces/mould 69120pieces/shift

Forming cycle 15-20second

Outputs (piece) 69120

Power (Kw) 34.5

Overall weight (T) 9.8T

Outside dimension (mm) 6790×2205×2780mm

Splint dimension (mm) 850×780×40mm
