cctv lcd monitor

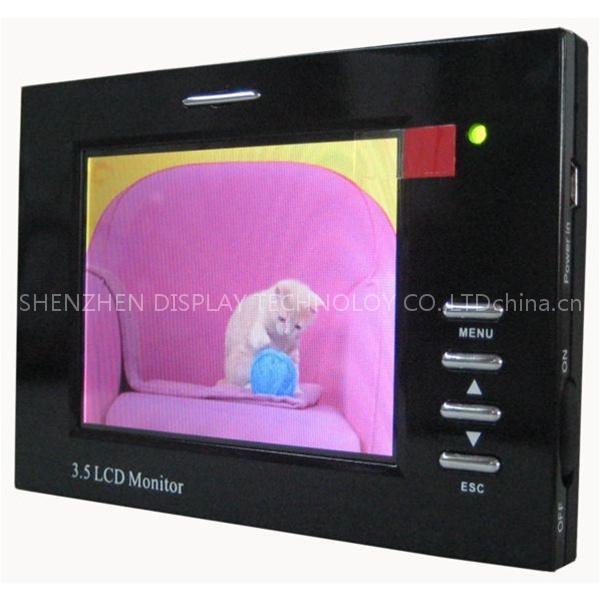

The 3.5" CCTV test monitor uses a BNC video input allowing CCTV installers to connect and test security cameras when performing surveillance system installations. This portable CCTV service monitor has a 3.5" TFT LCD screen and supports input from PAL & NTSC video cameras and other devices. The monitor screen supports 480 x 360 pixel resolution. This CCTV test monitor is powered by (4) AA batteries. Four rechargeable batteries and a charging power supply are included with this and the unit itself acts as a charger when plugged into a power source. This monitor can also be used as a small monitor for vehicle navigation systems or other video application where a very small monitor is required. A small wall mount is also included in the box with this test monitor.

Item No	DS-3.5
Screen size	3.5inch lcd monitor
Viewing range	70.08(H)×52.56(V)mm/4:3
Max resolutions	640×480
Brightness	300cd/㎡
Contrast ratio	450:1
Response time	15ms
Dotpitch	0.219(H)×0.219(V)mm
Color	16.7M
Viewing angel	Up/down/left/right 40/60/60/60
System of signal	PAL/NTSC auto change
Video system	1.0vp-p75ohm
OSD language	Chinese/English
Signal terminal	1CH AV input,1CH video out
Battery	4.8V 2500mAh
Input voltage	DC 12V/1.5A
Working temperature	temperature:-20-60°C humidity 5-95%RH
Power consumption	4W
Net weight	150g
Gross weight	900g
Product dimension	118×83.5×27mm
Carton box	24pcs/ctn / 54*47*29 (cm) G.W.22kg
