Listing ID#10145730
ModelYR-92DK
CategoryOther Security & Protection Products

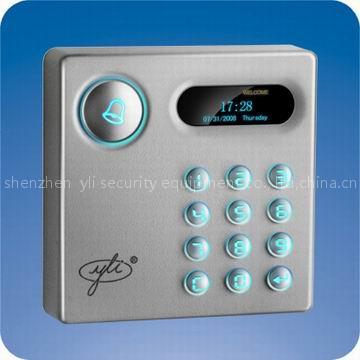

card reader
Specifications
- Brand
- YLI
- Origin
- guangdong
- Price Term
- EXW
Quick answer
card reader is a Other Security & Protection Products product. Key specs — Brand: YLI; Origin: guangdong; Price Term: EXW.
Product Description
Dimension:95×95×21mm Operating voltage:DC9~15V
Consume power: less than 1 W Operating current : 120 mA
Card type : 125Khz EM ID card Read range: ≥60(mm)
Output format : WG26/WG34 Cable distance : 150m
Tranmit rate : 1bit/ms Reading tips : buzzer / OLED display
Keypad output :4bits/8bits weight: 115g
Color:white/black Material : PC +AB, lens: PMMA
Operating temp: -30 +65
Consume power: less than 1 W Operating current : 120 mA
Card type : 125Khz EM ID card Read range: ≥60(mm)
Output format : WG26/WG34 Cable distance : 150m
Tranmit rate : 1bit/ms Reading tips : buzzer / OLED display
Keypad output :4bits/8bits weight: 115g
Color:white/black Material : PC +AB, lens: PMMA
Operating temp: -30 +65
Main feactures:
1. compatible with other access control system.
2. with standard Wiegand output signal .
3. with OLED display , buzzer and LED lights
4. built-in watch dog funtion
5. OLED display is programmable , allows users to edit the text via 2 different input interfaces .
6. built-in buzzer for sound indicator , the length and times of the sound are programmable .
7. suitable for the parking system when the RF siganl was cuted off .
8. built-in perpetual calendar,can be set on the card reader directly.
9. built-in doorbell button .
