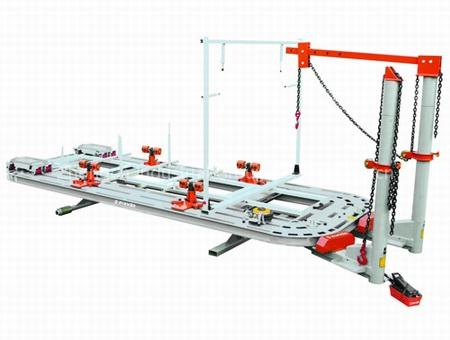

car bench

ZD-F600 Product introduction: 1.Hydraulic Vertical lifting platform provides the operating height of 300-800mm,convenient for vehicles on and off. 2.Double-tower design provides more possibilities for bench operation. pulling tower can move arbitrarily at any position around the plate. Easy to operate and saving time and power.

4.Tower hydraulic cylinder operated vertically with strong and accurate pulling power while without any extra power consumption.

5.Considering rectification of any kinds of collision distortion, it is equipped with many kinds of bench tools. three- dimensionally coordinate-measure of car body can be done by measuring system with high accuracy, Easy to operate.

7.Abundant car date handbook is prepared to duly provide the latest data. unique design of clamp could easily provide fast installment and clamping for all kinds of light vehicles.

Specifications: Platform length: 18 feet (5500mm) Platform width: 2000mm Platform height: 500mm Max. Pulling force: 100KN Tower traction range : 360° Pneumatic pressure: 6-8bar Max lifting load:3000kg Measuring precision: 1mm
