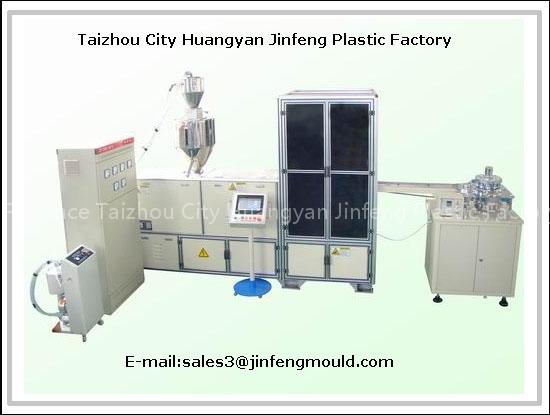

cap molding machine
Specifications
- Brand
- Jinfeng
- Origin
- Taizhou,Zhejiang,China
- Price Term
- FOB
cap molding machine is a Furniture Making Machines product. Key specs — Brand: Jinfeng; Origin: Taizhou,Zhejiang,China; Price Term: FOB.
Product Description
Type | JF-30(16T) | JF-30(24T) |
Capacity | 9000-11000pcs/hr | 15000-18 000pcs/hr |
Cap diameter | 22mm-45mm | 22mm-45mm |
Cap height | 10mm-25mm | 10mm-25mm |
Screw diameter | 50mm | 65mm |
Power of heating ring of the extruder | 11KW | 11KW |
Power of electromotor of the extruder | 4.5KW | 7.5KW |
Quantity of mold head | 16 | 24 |
Power of electromotor of the molding press machine | 1.1KW | 2.2KW |
Power of hydraulic pressure | 7.5KW | 11KW |
Power of cooling system | 3KW | 3KW |
Air consumption | 6kgs,0.5m3/hr | 6kgs,0.5m3/hr |
Power,Voltage | 380V,50HZ | 380V,50HZ |
Weight | 2500kg | 3800kg |
Size | 2700×1150×2100mm | 3500×1400×1900mm |
We will provide the most reasonable price,combined with quality and fastest speed to let you keep the market. Please don't hesitate to contact us for further
