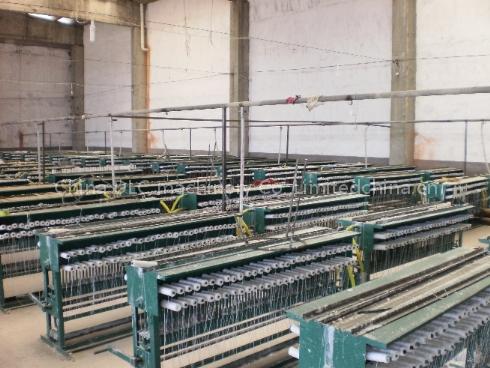

candle making machine

DLC wax pouring type Candle making machine Keyword: candle making, candle production, candle producing, candle making machine, candle production machine, candle plant, candle machinery, candle machine offers,wax candle making machine Description: The wax po is used to make candle in pouring method. 1.

Melt the solid wax (paraffin, palm wax or soy wax etc.) into liquid state 2. Mix with wax pigment (optional to make colored candle) 3. Turn on the water pump to feed cool water into the candle machine 4. Put the candle wick through the candle moulds on the machine 5. Pour the liquid wax into the candle moulds 6.

Scrap out the surplus wax above the candle moulds after wax get solidified. 7. Extrude out the candles from the moulds 8. Cut off the wick thread from the top of candle 9. Pack the candle into plastic bags or wrapped with paper 10. Put the wrapped candle into carton and carry to warehouse 11.

Prepare for next cycle of production The pouring type candle making machine has fixed moulds, each machine can make one diameter of candle, the candle length can be adjusted within 10mm.

The popular candle size and production rate is listed below: Candle size: Diameter 12mm, length 100mm, 140pcs/hour, 3-4 cycles/hour Diameter 16.8mm, length 157mm, 110pcs/hour, 3-4 cycles/hour Diameter 18mm, length: 190mm ,106pcs/cycle, 3-4 cycles/hour Diameter 20mm, length: 232mm, 100pcs/cycle, 3-4 cycles/hour Diameter 30mm, length:285mm, 48 pcs/cycle, 3-4 cycles/hour Diameter 37mm, length:15mm, 64pcs/cycle, 3-4 cycles/hour Diameter 47mm, length 180mm, 54 pcs/hour,3-4 cycles/hour Diameter 57mm, length 200mm, 44 pcs/hour,3-4 cycles/hour Diameter 60mm, length:360mm, 24 pcs/cycle,3-4 cycles/hour Diameter 60mm, length 100mm, 24 pcs/cycle,3-4 cycles/hour Diameter 63mm, length 160mm, 24 pcs/cycle,3-4 cycles/hour Any custom candle size is available if you provide us before production.

The candle factory should have at least five areas. Candle production shop, cooling water tower area, wax melting area, raw material warehouse, finish product warehouse.

The candle production line has the following main units: Standard water boiler Heat transfer liquid Wax melter Wax flowing pipelines Water tower Water pump Water pipelines Pouring type candle making machine Candle packing machine If you want to establish the candle factory, please do not hesitate to contact me for more information!
