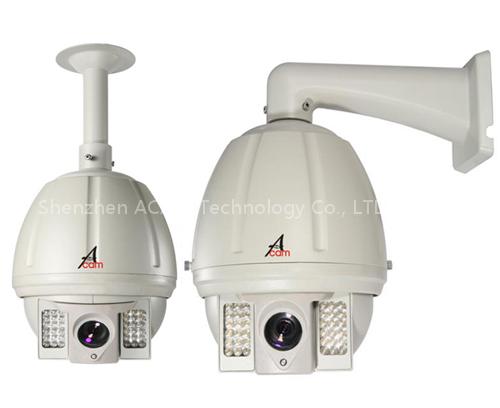

camera
Listing ID#10167362
ModelAC-TR81
CategorySecurity Products Agents
Security Products Agents

camera

Specifications

Brand
ACAM
Origin
china
Request Quote
Quick answer

camera is a Security Products Agents product. Key specs — Brand: ACAM; Origin: china.

Product Description

Product description: Feature:1. Adopt Multi-angle LED ARRAY IR LED, IR light can well-distributed to every area, no spot light on the pic. 2. Adopt stable LED power supply. IR led working stable and no effected by the temperature. Working life is 5 to 10 times longer than normal LED.3. Adopte perfect and high ability DSP design. 4. The housing all use Aluminum material, It has good distribute heat function.5. Adopte step motor. It can run stable anytime.6. Adopte EEPROM data storage function, the data never loss when the power cut down. 7. 64pcs preset position. 4 group patten(each patten has 16 preset position)8. Support 2 preset scan’ support 360°scan; it has reback home position.9. Night vision can reach to 100M.10. IR LED working as the zoom changing automatically.

ModelAC-TR81
Lens22X optical zoom lens, Day/Night.
Dome motorDC12V/0.5A
Camera power supply DC12V/1A
devices ambientfan, 50℃ heater, 5℃
devices operating voltageDC12V
Address numbers1～255
Communication system RS485 Bus
Communication protocolsupporting three protocols
communication1200(19200)/2400/4800/9600bps
Controlling devicevideo matrix, hard disk video recorder, DVR controlling keyboard
Preset position number64
Tour number4 (with 16 preset positions for each tour)
Dome movementpan 0°-360°, tilt 0°-90°
Dome speedpan/tilt 5-20 ranges, speed adjustment by controlling joystick
Manual spped6°～14°/s
Movement controlpan adjustable within the dome movement scope
IR distance2 group IR LED( Max. 100M)
IR controlDefault / Lens zoom control.
camera and lens size140（L）×70（H）×70（W）mm
Power supplyDC12V（2A）～DC15V（2A）
IP certification
