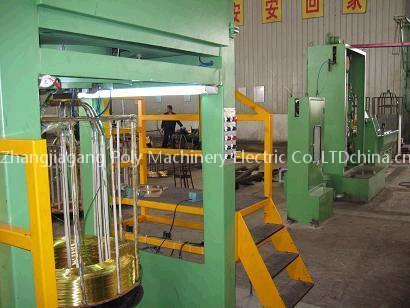

brass wire annealing machine

BRASS WIRE CONTINUOUS ANNEALING machine A.Inlet wire: 8mm B.outlet wire:2.5-3.2mm c. As we set the final die's size, through the PLC the dies will fully antomatic showed on the monitor. The driving motors of drawing & final capstan will synchronously controlled to gain a 2% less drawing slip ratio. D.

The rapid dies change system need not change all the dies in working but final one, that save a lot of time. E. Transmission gears and bearings are enforced lubricant. F. Ring type drawing capstans for convenient maintenance and replacement.
