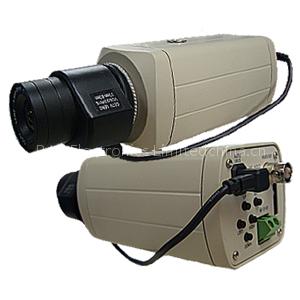

box camera is a Other Safety Products product. Key specs — Brand: RAS; Origin: China.
Product Description
Key Features： Sony SS-11X DSP chipset 1/3" SONY SUPER HAD CCD Supports DC or Video lris Lens BLC and AGC Auto White Balance Available in 12V DC or 24V AC O.S.D.
Control Detail Description:Image Sensor: 1/3"SONY CCDResolution: 420/480/520TVL OptionTotal Pixels (HxV): NTSC : 510(H) x 492(V) PAL : 500(H) x 582(V) / NTSC : 768(H) x 494(V) PAL : 752(H) x 582(V) OptionScanning Frequency: NTSC : 15.734 KHz(H), 59.94 Hz(V) PAL : 15.625 KHz(H), 50 Hz(V)Scanning System: 2:1 InterlaceS/N Ratio: More than 48/52dB (AGC Off) OptionMin.
Illumination: 0.003/0.5/0.8 LUX OptionSync.System: SynchronizationElectronic Shutter: NTSC : 1/60 sec / PAL : 1/50 secGamma: γ = 0.45Video Output: 1.0 Vp-p Composite (75?)AGC: AutoPower Requirement: DC12V (±10%)Power Consumption: 100mAOperation Temperature: -10℃～+50℃ RH95% MaxStorage Temperature: -20℃～+60℃ RH95% MaxLens: C/CS MountColor: WhiteDimensions (mm): 110x55 x 50 mmWeight: Approx.250 g
