Listing ID#10096456
ModelKLB75
CategoryOther Plastic & Rubber Machinery
Quick answer

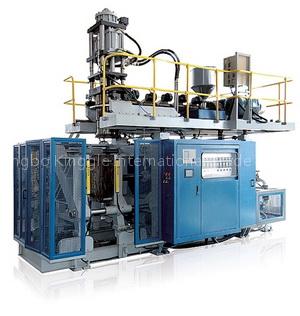

blow moulding machine is a Other Plastic & Rubber Machinery product. Key specs — Origin: China.
Product Description
| Material | PE.PP.PVC.PA... | ||
| Max container capacity | L | 2 | 5 |
| Output(dry Cycle) | pc/nr | 1000×2 | 800×2 |
| Dimension(L×W×H) | M | 2.7×2.4×2.6 | 3.3×2.4×2.6 |
| Total weight | ton | 4.8 | 5.5 |
| Clamping Unit | |||
| Clamping force | KN | 38 | 70 |
| Platen opening stroke | mm | 80-330 | 80-410 |
| Platen size | mm | 250×320 | 285×370 |
| Max mould size(W×H) | mm | 250×280 | 285×320 |
| Mould thickniss | mm | 90-160 | 90-200 |
| Power | |||
| Total power | Kw | 38.5 | 49 |
| Fan power for screw | Kw | 0.3 | 0.5 |
| Oil pump power | Kw | 5.5 | 7.5 |
| Air pressure | Mpa | 0.7 | 0.8 |
| Air consumption | m3/min | 0.6 | 0.7 |
| Average energy consumption | KW/h | 20 | 30 |
| Extruder unit | |||
| Screw diameter | mm | 65 | 75 |
| Screw L/D ratio | L/D | 24 | 24 |
| Plasticising capacity | Kg/hr | 60 | 80 |
| Number of heating zone | zone | 3-8 | 3-8 |
| Extruder heating power | KW | 7.8 | 10.8 |
| Extruder driving power | KW | 18.5 | 30 |
| Die-head | |||
| Number of heating zone | zone | 3-6 | 4-8 |
| Power of die heating | KW | 2.5-5 | 5-10 |
| Max die pin diameter | mm | 100 | 140 |
| Accumulator capacity | L | 1.25 | |
