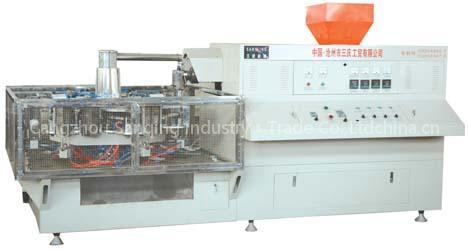

blow molding machine

Features:This blowing machine adopts screw extruding blow molding process which is frequency converted and automatic temperature controlled. As a combination of electric equipment, pneumatic device and machinery, it is stable in performance, easy to operate, and suitable for manual production.

Three patented techniques are used on this machine which is optional to install automatic mouth-cutting device. Parameters: Max.Volume of bottle 1000ml

Theoretical capacity 1500-5000PCS/hr

Allowable mould width 125mm

Allowable mould thickness 118mm

Air pressure 0.4-0.7Mpa

Rated power 12kw

Size of equipment(L×W×H) 3300×1200×1500mm

Weight 1500kg

This blow molding machine with 4 station, 6 station and 8 station are available. High-speed cutting machine, special grinder for plastics, oil-free air compressor, hopper dryer, automatic vacuum loader is optional.
