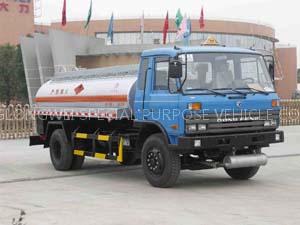

bitumen tank truck

The bitumen tank truck mainly consisted with tank, power drive system, controlling system, pipe unit, speed measure unit, heating system etc...The truck applied in dealing the asphalt road and transport liquid bitumen and black oil.
MAIN SPEC.:
ITEM MODEL&SPEC MANURACTURER
SPECIAL VEHICLE EQ1168 Bitumen Tank Truck CHUFEI
CHASSIS EQ1168KJ2 DFA
ENGINE ISDe180 30 DFA Cummins
GEARBOX 6-Speed,Mechenism DFA

CHASSIS TECHNIQUE PARAMETERS:
ITEM MODEL&SPEC ITEM MODEL&SPEC
Drive System 4*2 Exhaustion Standard 3
Emission(ml)/Power(km) 4500/132 Tyre & Spare Tyre Spec. 10.00-20,10.00R20
Gross /Rated / Kerb Mass(kg) 16000/7500/8305 No. of Leaf Springs 8/10+8
DimensionL*W*H(mm) 8490*2495*3950 Front/Rear Suspension(mm) 1205/2285
Wheelbase(mm)/Axis No. 5000/2 Approach /Departure Angle 20/12
Front/Rear-Axle Front Axle 5T,Rear Axle 10T, Front/Rear Truck(mm) 1940/1860
Driver Cab Flat, bunk, tilted, Fully Closed Clutch diaphragm spring clutch
Steering-Gears Spoke Steering wheel, power-assisted steering Brake System Double line, spring, Exhausted

VEHICLE MODIFCATION TECHNIQUE INFORMATION
ITEM MODEL&SPEC ITEM MODEL&SPEC
Material Q235B Material Thickness(mm) 5
Thermal Insulation Material Rock Wool Insulation Stuff Thickness(mm) 50mm/100mm
Tanker Coating Material WISCO, Mill Rolled Coating Stuff Thickness(mm) 0.9mm
Heating Equipment(Burner) BaiTe14-200,000 kilocalorie Heating Pipes Manufacture WISCO
Heating Pipes Diameters 159mm Tanker Capacity(T) 12-15
Bitumen Pump (Opt) HL224AH (USA Head Rotor) Bitumen Pump Flowing 11 CBM/Hr
Features The bitumen tank truck equipped with auto ignition diesel burner and heater or coal burning heating preservation. Multifunction with auto discharge, pump pressurized discharge and tank pump suction, transportation. Advantageous with large capability, high configuration , maneuverable, high quality, easy operation, accurate design structure, reliable performance, attractive appearance, durable usage etc.
