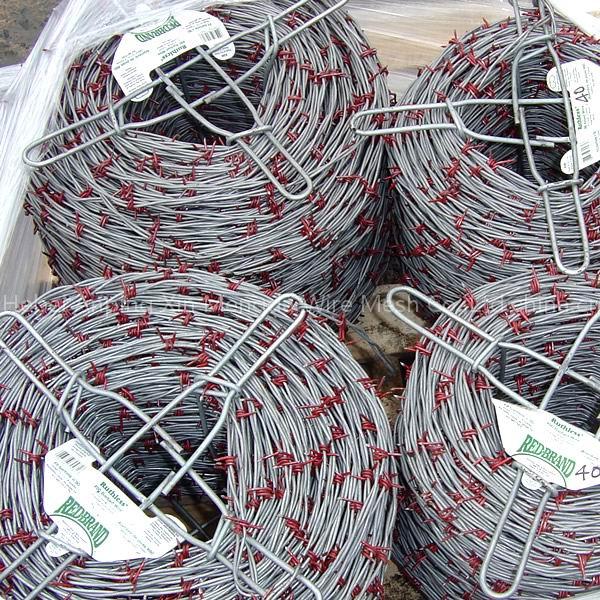

Name: barbed wire fence
SKU: wire mesh

nbsp;Galvanized Barbed Iron Wire in IOWA type, with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).Galvanized Barbed Iron Wire offered by us is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.

Packing: in coils
nbsp

Gauge of Strand and Barb in B.W.G.	Approximate Length per Kilo in Meter
Gauge of Strand and Barb in B.W.G.	Barbs Spacing 3"	Barbs Spacing 4"	Barbs Spacing 5"	Barbs Spacing 6"
12x12	6.0617	6.7590	7.2700	7.6376
12x14	7.3335	7.9051	8.3015	8.5741
12-1/2x12-1/2	6.9223	7.7190	8.3022	8.7221
12-1/2x14	8.1096	8.814	9.2242	9.5620
13x13	7.9808	8.899	9.5721	10.0553
13x14	8.8448	9.6899	10.2923	10.7146
13-1/2x14	9.6079	10.6134	11.4705	11.8553
14x14	10.4569	11.6590	12.5423	13.1752
14-1/2x14-1/2	11.9875	13.3671	14.3781	15.1034
15x15	13.8927	15.4942	16.6666	17.5070
15-1/2x15-1/2	15.3491	17.1144	18.4060	19.3386

PVC Coated Barbed Iron Wire

Technical Info of PVC Coated Barbed Iron Wire

Core of PVC Coated Barbed Iron Wire can be galvanized iron wire or black annealed iron wire.
A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us.
Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm.
Packing: In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.

Core Wire Diameter	Outside Diameter
1.0mm-3.5mm BWG.11-20 SWG. 11-20	1.4mm-4.0mm BWG. 8-17 SWG. 8-17
Note: Thickness of P.V.C. coating layer: 0.4mm-0.6mm

We hope you kindly enquiry,if you want to get the quotation,please offer the specifications.
thanks!
