bag making machine
Listing ID#10208078
ModelYP-600-1200
CategoryBag Making Machines
Bag Making Machines

bag making machine

Specifications

Origin
China
Request Quote
Quick answer

bag making machine is a Bag Making Machines product. Key specs — Origin: China.

Product Description

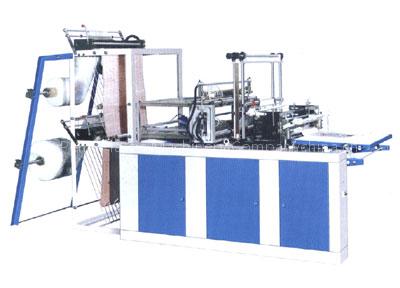

YP-600-1200 Computer Control Double-layer Film Sealing And Cutting Machine

Use: It is used for blowing various plastic films of low-high density polythylene natural colour bag and colour printing bag, which are widely used for packing food ,garments, industrial products and electric appliances etc. Characteristics: 1.Automatic bag-making counting and automatic alarm. accurate photoelectric eye tracking, the machine can be automatically stopped when bag making error exceeds 2 pieces. length of the bag is controlled by the button switch.Main technical parameter
Model YP-600 YP-700 YP-900 YP-1000
Max.Cutting Width 550mm 650mm 850mm 1000mm
Making Length 1600mm 1600mm 1600mm 1600mm
Making Speed 0.006-0.010mm 0.006-0.10mm 0.01-0.10mm 0.01-0.10mm
Length Error ±1mm ±1mm ±1mm ±1mm
Bag-making Speed 40-120pcs/min 40-120pcs/min 40-120pcs/min 40-120pcs/min
Power of Main Machine 1.1kw 1.5kw 1.5kw 1.2kw
Power Of Heating 1.2kw 1.5kw 2kw 2.5kw
Total Power 2.5kw 3.2kw 4kw 5.5kw
Weight of Machine 700kg 820kg 900kg 1100kg
Overall Dimension 2800×1200×1350mm 2800×1300×1350mm 2800×1500×1350mm 2800×1700×1350mm
