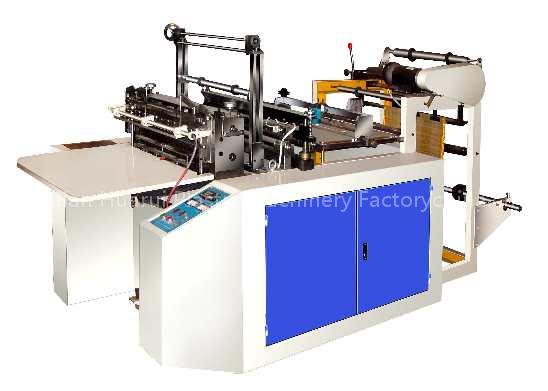

bag making machine

Useage :

The machine is applled to manufacturing and printing the encolored Vest Bag made of HDPE ,LDPE roll film ,it is of high output and good economic result .

Features :

cool cutter is made of special steel, sharp and anti abrasive. Since there is a micro adjusting device, the cutter can be easy adjusted for different thickness materials.

2 The seal cut can be turned over 180degree, so it is very convenient to renew the rubberized fabric and have routine and preventive maintenance.

3, by employing digital device and high precise and good qualified mechanical components, the machine can work freely on products of multi length with high speed.

4, Sealing and cool cutting at the same stage, no tension on feeding but the bag bottom firmly sealed.

5 The machine alarms and stops when the products has error print, by this, it reduces wastrels.

6 The feeding system consists of photoelectrical parts, stepping motor and adjusting parts, and it is easy for operation and precise for making bags

Main Technical Parameter:

Model

LDF-600

Max. sealing and cutting width

550mm

Max. sealing and cutting length

1600 mm

Sealing and cutting thickness

0.01-0.10mm

Bag-making Speed

40-120pcs/min

Power of main motor

1.2kw

Heating Power

1.5kw

Power of Main Motorr

2.5kw

Weight of Machine

700kg

Overall Dimension(L*W*H)MM

2800*1200*1350[/b]
