Listing ID#10234472
ModelLW-6
CategoryOther Farm Machines

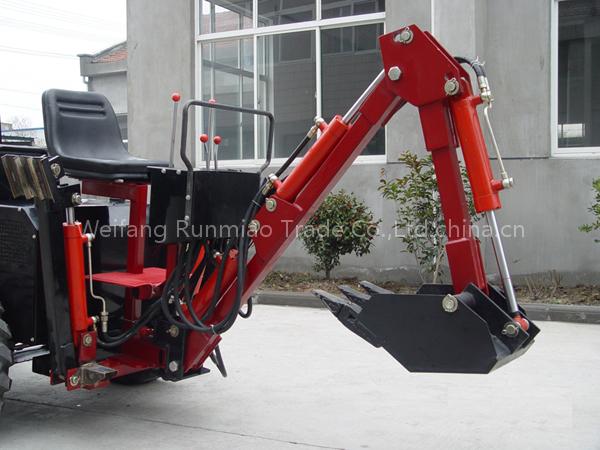

backhoe for tractor
Specifications
- Brand
- Runshine
- Origin
- Weifang City of China
- Price Term
- FOB
Quick answer
backhoe for tractor is a Other Farm Machines product. Key specs — Brand: Runshine; Origin: Weifang City of China; Price Term: FOB.
Product Description
| Model | LW-6 | LW-7 | LW-8 |
| Max. digging depth (mm) | 1850 | 2150 | 2640 |
| Max. digging radius(mm) | 2800 | 3360 | 3930 |
| Max. digging height(mm) | 2500 | 3400 | 3510 |
| Loading height (mm) | 1400 | 1760 | 2000 |
| Max.digging depth(2ft)Flat bottom(mm) | 1600 | 2000 | 2500 |
| Digging long | 1610 | 1410 | 1450 |
| Knighthead expanding width | 1800 | 1830 | 1820 |
| Swing Arc(°) | 140 | 60 | 140 |
| Bucket rotation(°) | 160 | 160 | 160 |
| Size(m3)Standard attached | 0.036 | 0.045 | 0.054 |
| Cap.(mm)Standard attached | 300 | 400 | 450 |
| overall dimension | 2300x1860x890 | 2360x1960x1270 | 2500x1960x1400 |
| Weight(kg) | 470 | 540 | 600 |
| Valve standard press | 16 Mpa. | 16 Mpa. | 16 Mpa. |
| Valve over loading protect press | 7±1 Mpa. | 7±1 Mpa. | 7±1 Mpa. |
| Valve input flux area | 12-28 L/mm | 12-28L/mm | 12-28l/mm |
| Connect height (mm) | 410 | 460 | 460 |
| Connect width(mm) | 399 | H′=530 | H′=530 |
| Up connect pinhole dia.(mm) | 22 | 22 | 22 |
| Down Connect pinhole dia, | 19 | 19 | 19 |
| 　 | 　 | 　 | 　 |
| Bucket standard | Cap.(mm) | 250300400450500550 | |
| Size(m3) | 0.030,0.036,0.045,0.054,0.060,0.066 | ||
