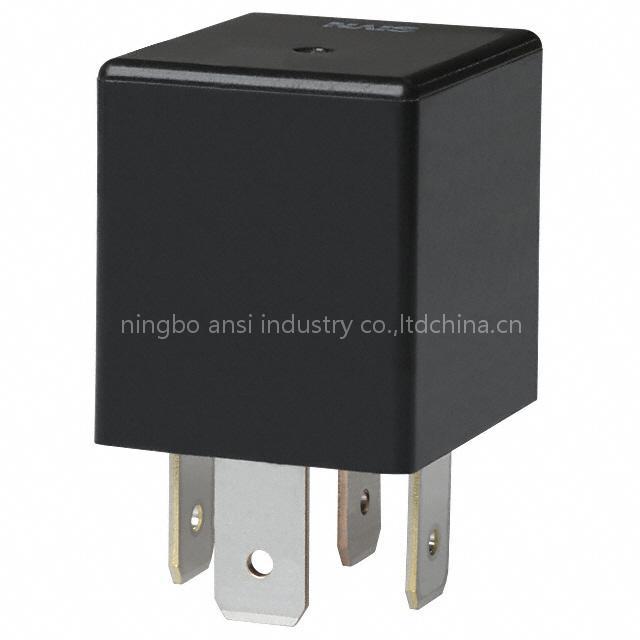

auto relay is a Vehicle Parts & Accessories product. Key specs — Origin: china; Price Term: FOB.
Product Description
1.Automotive Relay
2.Fasten connection pins
3.70A starting load capacity
Auto Relay | HHC67G |
Relay Dimension (mm): | 29X29X26.5 |
Contact arrangement: | 1A/1B/1C |
Contact capacity: | 70A 14VDC |
Max. switching voltage: | 75VDC |
Max. switching power | 980W |
Nominal voltage | 6~24VDC |
Pull-in voltage | ≤65% |
Release voltage | ≥10% |
Operate/Release time | ≤7ms/5ms |
Coil power: | 1.8W |
Contact resistance | ≤50m&Omega |
Insulation resistance | ≥100M&Omega |
Dielectric strength Vr.m.s | |
Between contacts: | 500VAC |
Between coil & contact | 500VAC |
Ambient temp.: | -40~+85oC |
Electrical life: | 1X105 |
Mechanical life: | 1X107 |
(Auto Relay, Wiper relay, Automotive Relay)
Packaging & Delivery
Packaging Detail: standard export carton
Delivery detail: 20-25days
Supply ability: 300,000sets per month
Mini order: 5000pcs
