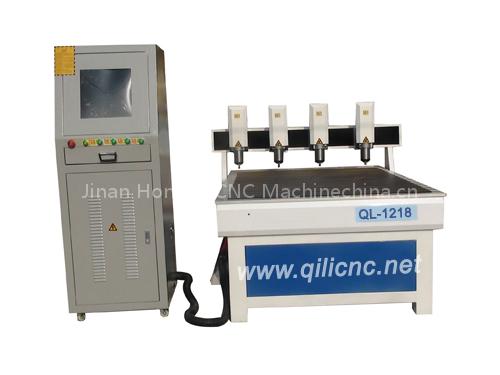

antique furniture cnc router
Specifications
- Origin
- China
- Price Term
- FOB
antique furniture cnc router is a Furniture Making Machines product. Key specs — Origin: China; Price Term: FOB.
Product Description
German ball screw nuts; imported guide;
Linear guide ensures a longer life of the machine;
High-speed driver;
Axle X with dust-proof system, and this ensures the good performance of the machine;
The Antique Furniture CNC Router continues to work after the point-break and blade-brake, holding as many as 9 points;
Strong compatibility: CAD/CAM softwares, including type 3,artcarm,castmate,proe,corelerow...
Wide Range of Use: Advertising, mould, stone, architecture model...
Standard Configurations | Options |
Steel Lathe Bed with aluminum | 2.2KW Dust Collector |
Three axis with imported round guides and double ball screw nuts | |
NCSTUDIO system | |
1.5W water-cooling transducer motor | |
Leadshine driver |
Technical Data | |
X Y Working Area | 1200mm*1800mm |
Z Working Area | >100mm |
Table Size | 1340mm*2020mm |
Max. Speed | 6m-7m/min |
Max. Working Speed | 3m-3.5m/min |
Working Delicacy | 0.005mm |
Repositioning Accuracy | 0.05mm |
Feeding Height | 110mm |
Command Code | G Code*.u00*.mmg*.plt |
Working Software | Windows98/2000/xp |
Power (not including spindle) | 450w |
Working Voltage | AC220V/50HZ |
Spindle Power | 1.5kw |
Spindle Running Speed | 0-24000rpm |
Motor | Stepper |
