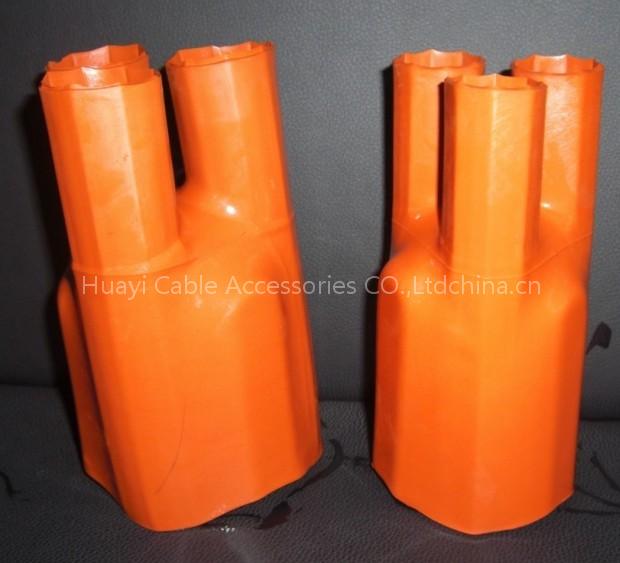

Name: anit tracking cable breakout
Brand: heag

widely used in electric power industry to provide insulation with sealing over the cruth of multi-core cables. There are 3 clors: red, black and mauve. Dia of body and finger is available. The elongation at breakis 300%, and longitudinal shrinkage is +-5%

Property	Typical Data
Hardness	80(shoea A)
Tensile strength	10mpa
Elongation at break	300%
Shrink temperature	120-140
Shrink ration(dia)	250%
Longitudinal shrinkage	±5%

Specification	Dia of Body	Dia of finger	size of conductor(mm2)	usage range	color
ZT-2.0	22/12	11/3.5	10-16mm2	LV termination for 2 cores	black
ZT-2.1	38/19	15/5	25-50mm2
ZT-2.2	58/23	26/8.5	70-120mm2
ZT-2.3	88/42	33/14	150-240mm2
ZT-3.00	26/20	11/5.4		LV,HV termination for 3 cores	black,redmauve
ZT-3.0	53/26	25/7	10-16mm2
ZT-3.1	73/39	30/10	25-50mm2
ZT-3.2	88/48	38/15	70-120mm2
ZT-3.3	108/60	47/18	150-240mm2
ZT-3.4	125/70	65/25	300-500mm2
ZT-4.0	33/22	13/5	10-16mm2	LV termination for 4 cores	black
ZT-4.1	40/26	16/6	25-50mm2
ZT-4.2	64/33	26/7.5	70-120mm2
ZT-4.3	76/42	33/11	150-240mm2
ZT-5.0	35/21	13/5	10-16mm2	LV termination for 5 cores	black
ZT-5.1	52/29	16/5	25-50mm2
ZT-5.2	80/39	26/10	70-120mm2
ZT-5.3	93/46	33/11	150-240mm2
