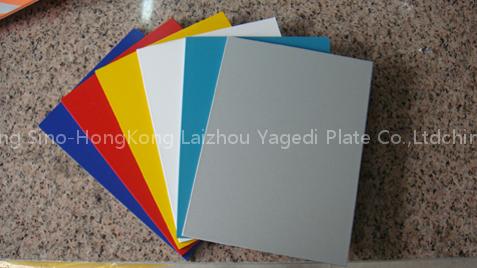

aluminum composite panel

Our product have passed ISO9001:2000,PICC,GB24021,ISO14001,test of GB/T17748-1999 and national fireproof material B1 grade Product Description Material: front side: Aluminum alloy sheet coated with fluoro-carbon resin(PVDF) and polyester resin(PE) roasting painting 2.Core: Nontoxic polyethylene back side: Aluminum alloy sheet coated with polyester resin painting

Surface finish: Treated with PVDF and PE resin rolling roasting coating PE Surface coating thickness: more than 16u PVDF surface coating thickness:more than 25u

Aluminum alloy sheet thickness: 0. 1mm, 0. 12mm, 0. 15mm, 0.18mm,0. 21mm, 0.25mm,0. 3mm, 0.4mm, 0.45mm,0.5mm Dimensions Thickness: 3mm, 4mm Width: 1220mm---1500mm, Length: 2440mm-up

Standard size: 1220 x 2440mm, 4mm/1200pieces in 20' container, 3mm/1400 pieces in 20' container Nonstandard sizes are available according to clients requirments
