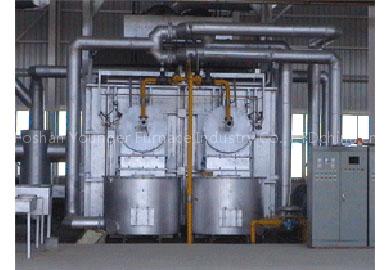

aluminium melting furnace
Specifications
- Brand
- YOUNGER
- Origin
- china
- Price Term
- FOB
aluminium melting furnace is a Industrial Power Supplies product. Key specs — Brand: YOUNGER; Origin: china; Price Term: FOB.
Product Description
a potentially tremendous energy-saving which is up to 10% to 70% amd easing the letting-out of the green house atmosphere.
2.Large expansion of the flame burning region. The flame reaches to every corner if the furnace wall with symmetrical temperature so as to increase the production quality and prolong the lifespan of the furnace.
a strong transcant ability along with the increase of the hearth average temperature. Under the condition of the same output, the hearth size of industrial furnace and boiler is reduced by over 10% to 15% while under the same size furnace.
4. With a low combustion noise. The flame is gradually beginning in the hearth area instead of catching fire in the firebox.
5. With a small oxygenation destroy towards the mental liguid in metallurgy industrial furnace because of inadequate-oxygen combustion in the hearth.
| item | combustion engine type | furnace chamber max. temperature | furnace capacity | furnace constructure | burner QTY | Total power |
| RL-3 | burners | 1100 | 3000 | straight door&arc top | 2 | 12KW |
| RL-5 | burners | 1100 | 5000 | straight door&arc top | 2 | 12KW |
| RL-8 | burners | 1100 | 8000 | tilting door&arc top | 2 | 15KW |
| RL-10 | storage | 1100 | 10000 | tilting door&arc top | 2 | 36KW |
| RL-12 | storage | 1100 | 12000 | tilting door&arc top | 2 | 36KW |
| RL-15 | storage | 1100 | 15000 | tilting door&arc top | 2 | 40KW |
| RL-18 | storage | 1100 | 18000 | tilting door&arc top | 2 | 40KW |
| RL-22 | storage | 1100 | 22000 | tilting door&arc top | 2 | 45KW |
| RL-25 | storage | 1100 | 25000 | tilting door& plat top | 2 | 45KW |
| RL-30 | storage | 1100 | 30000 | tilting door& plat top | 2 | 60KW |
