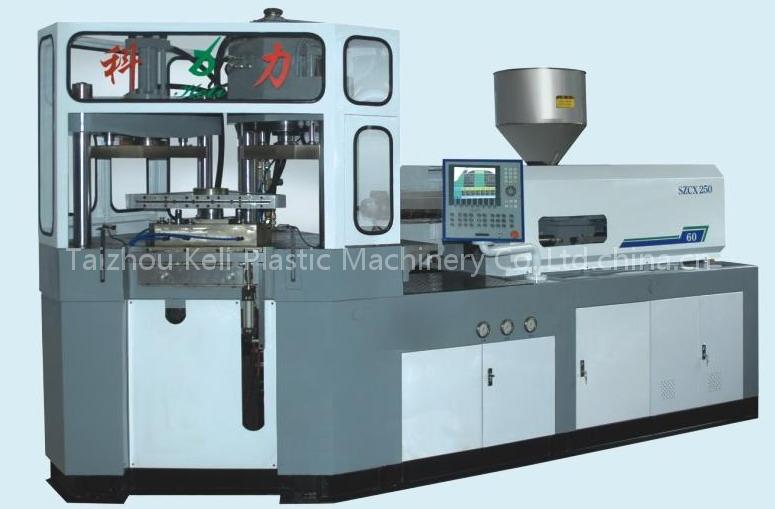

all automatic Injection&Blow moulding Machine(SZCX160/45)

A).Features of all automatic Injection&Blow moulding Machine(SZCX160/45):
Feature bottle neck is moulded by means of therm-orunner system and high pressure in jection. which makes the accuracy of bottle mouth.bottle neck and thread high, as well as sealing botlles are nojoint seam. No leftover bits and piecces are in process ing.which can save raw material.
1.Hihg efficiency of continuous production with the horizontal three-position swivel device and the constr-uction of one mould but multiple cavities. Automatic manufacture, have no secondary pollution accord with requirement of sanittation.
2.Using fame brand and high quality hydraulicpneu-matic and electrical elements, the system is of good preformance and high reliability with computer control.
3.Using double propertional hydraulic system, which makes the adjustment of hydraulic system handy and keeps system stable in performance.
B).The main parameters of Injection&Blow moulding Machine(SZCX160/45):

No	Name	Unit	Data
1	screw	mm	45
2	Max.theoreticalinjection capacity	cm3	200
3	Total power for cylinder-heating	kw	9
4	Plasticing capacity approx	g/s	40
5	Camping force of injection mould	kn	450
6	Opening stroke	mm	120
7	Camping force of blow mould	kn	78
8	Opening stroke of blow mould	mm	120

No	Name	Unit	Data
9	Dry cycle time	s	3.5
10	Max swing radius	mm	456
11	liftion height of rotary table	mm	60
12	Max plane size of mould(LxW)	mm	480x390
13	win mould thickness	mm	240
14	Motor power	kw	22
15	Mould heating power	kw	3.6
16	Pressure of hydraulic system	MPa	10

No	Name	Unit	Data
17	Max working pressure of compressedair	MPa	1
18	Discharge rate of compressed air	m3/min	0.6
19	Consumption of cooling water	m3/h	4
20	Dimension of machine(LxWxH)	mm	3350x1400x2420
21	Machine weight	T	~5
22	Range of formbility product	ml	3-500
23	Height of formability product	mm	≤160
24	formability product	mm	≤90
