Name: air jet loom 190cm
Brand: Red Flag Textile Machinery
SKU: zax-190cm

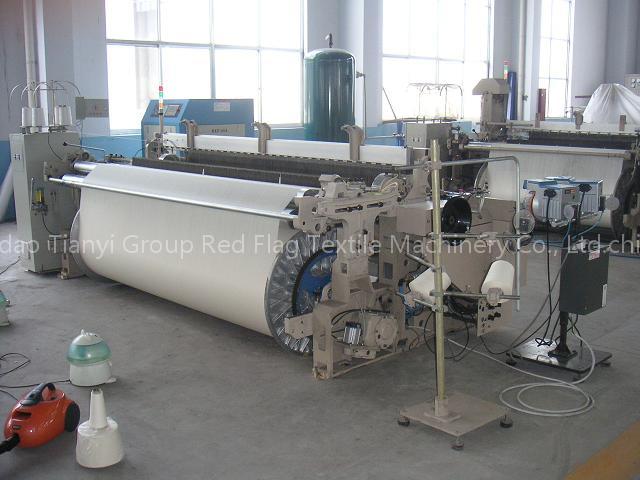

air jet loom 190cm

Specifications

Brand: Red Flag Textile Machinery
Origin: China
Price Term: FOB

Product Description

JA11190-360 air jet loom is the latest developed over-width air jet loom in our company with double-color or four-color ,electric let-off double-beams double-servos ,machinery or electric take-up ,single rear beam ,single(double) side-shrink width ,positive cam or dobby, speed of the loom can reach as fast as 500-1000 rpm.

Reed width(cm)	190,210,230,250,,280,310,340,360
Norminal reed width regulating rang(cm)	0-60,0-80
Design rotating speed(r/min)	500-1000
Yarn weaving range(d)	5-100 short fiber, 30-600D/TEX
Weaving weight(g/m2)	30-500
Weft density range(pc/inch)	40-205
Weft selection	2 or 4 or 6 colour
Weft insertion mechanism	Main nozzle+swing nozzle+abnormity lock+extending nozzle
Weft stop	Photoelectric weft feeler,have pick finding device
Warp stop	Electric touch rod six tier
Warp left-off device	Electronic type warp left-off mechanical(optional)
rolling	Mechanical
Diameter of warp-beam (mm)	800/1000
Diameter of cloth-roller (mm)	550
Shedding device model	Cam shedding,dobby shedding
Power(kw)	1.6
