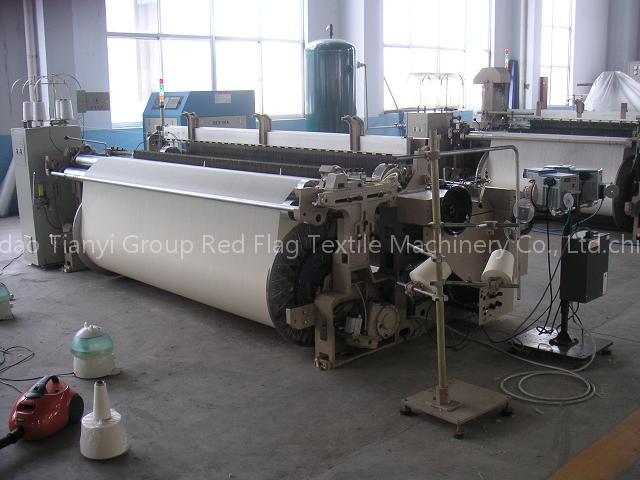

air jet loom

Reed width(cm)

190,210,230,250,,280,310,340,360

Norminal reed width regulating rang(cm)

0-60,0-80

Design rotating speed(r/min)

500-1000

Yarn weaving range(d)

5-100 short fiber, 30-600D/TEX

Weaving weight(g/m2)

30-500

Weft density range(pc/inch)

40-205

Weft selection

2 or 4 or 6 colour

Weft insertion mechanism

Main nozzle+swing nozzle+abnormity lock+extending nozzle

Weft stop

Photoelectric weft feeler,have pick finding device

Warp stop

Electric touch rod six tier

Warp left-off device

Electronic type warp left-off mechanical(optional)

rolling

Mechanical

Diameter of warp-beam (mm)

800/1000

Diameter of cloth-roller (mm)

550

Shedding device model

Cam shedding,dobby shedding

Power(kw)

1.6
