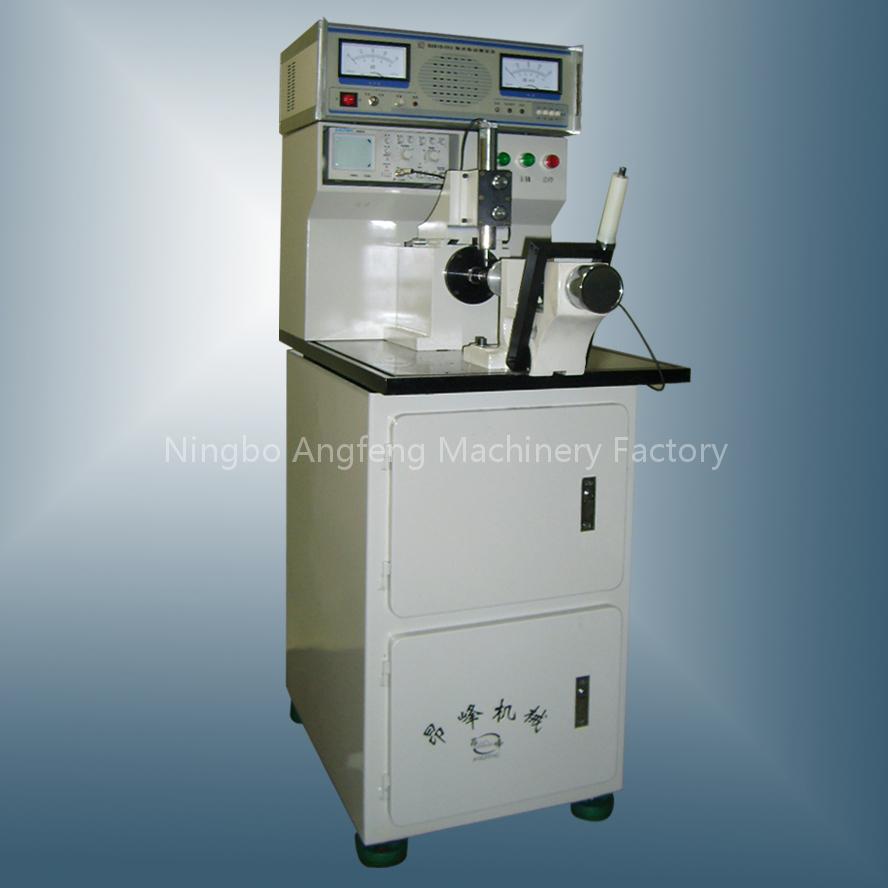

af222Bearing

Main Specifications 1, measured bearing type: deep groove ball bearings, single-sided angular contact bearings.

2, the measured bearing specifications: (diameter) Ф6-Ф60 mm

3, the measuring range: RMS :0-40 between 30-70 60-100 dB; 3 optional

Peak :15-55 ,45-85 ,75-115 dB; 3 optional

4, a consolidated basis Vibration: ≤ 2 dB

5, integrated rotation accuracy: ≤ 0.002

6, the axial thrust: 2 to 5 kg adjustable

7, Spindle Speed: 1500 r / min ± 15r/min

8, oil pressure: 0.6 MPa

9, available power: 380 V, 50Hz (370W three-phase motor-2)

Xinhua me power: 220 V ± 10% 50Hz 80W

10, lubricating medium: on the 2nd spindle oil

11, Weight: 225 kg ≈
