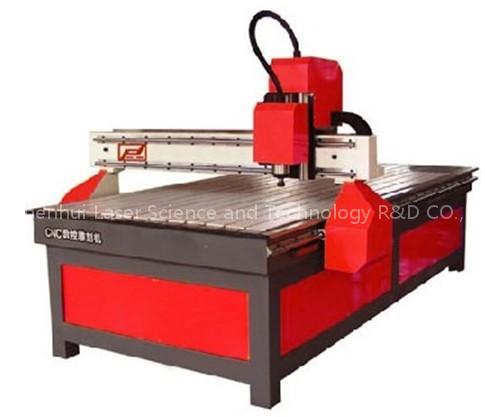

advertising CNC router machine /CNC router machine
Specifications
- Origin
- China
advertising CNC router machine /CNC router machine is a Other Plastic & Rubber Machinery product. Key specs — Origin: China.
Product Description
Large industrial CNC router machine Feature >1. Cast iron platform, cast aluminum gantry to ensure high rigidity, high precision2. adopt linear round guideway which can adjustable the gap and can change track, the life can be not less than 10 years,Comprehensive performance is the best3.
Efficient processing , high-power spindle motor, low noise, strong cutting4. Compatible Type3/Artcam/Castmate/Proe/CAXA / Wentai and other software.5.
Have power restored, power outages continued carving, processing time forecast and other functions, the real human design.Applicable industry:The machine is suitable for mahogany, plastic, copper, aluminum, stone material ect plane and relief processing.Technical parameter >Model SH-1325X Y Z-axis travel 1300 * 2500 * 200mmXYZ linear guideway Linear Round guidewayMaxi moving speed 2800mm/minMax engraving speed 2000mm/minMax feeding height 200mm Resolution 0.005mmRepeat positioning accuracy of 0.05mmCommand G code.
U00. Mmg. Plt.
EngSoftware operating environment WINDOWS2000/XPVoltage 380V/220V/110VSpindle power 1.5KW/2.2KW/3KW/4.5KW/6KW (optional)Spindle speed 0-24000rpm/minControl system Ncstudio/DSP(optional)Drive type Stepper motor/ Servo motor (optional)Machine size 1900 * 3200 * 1450mmPackage dimention 2050 * 3500 * 1500mmWeight 600kgOptional accessories Cylinder rotary attachment/Water tank/.
Vacuum adsorption system/dust collector
