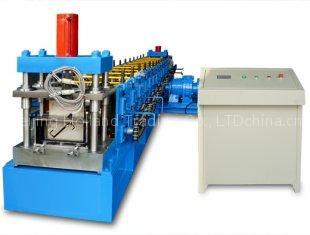

Z Purlins Roll Forming Machine
Specifications
- Brand
- 1997
- Origin
- China (Mainland)
- Price Term
- FOB
Quick answer
Z Purlins Roll Forming Machine is a Iron Pipes product. Key specs — Brand: 1997; Origin: China (Mainland); Price Term: FOB.
Product Description
horizontal structural in a roof. Supporting roof deck in metal building.
No. | Item | Description |
1 | Main dimension | 11400 x 1600 x 1800mm |
2 | Main motor | 18.5kW |
3 | Hydraulic motor | 5.5kW |
4 | Hydraulic pressure | 20MPa |
5 | Forming speed | 12m—15m/min (not including cutting time) |
6 | Suitable material | Q195~235 cold rolled steel, galvanized sheet |
7 | Material of rollers | Cr12 HRC58-62 |
8 | Width of product | 100-300mm |
9 | Thickness | 1.5-3.0mm |
10 | Roller station | 25 |
