Listing ID#10038381

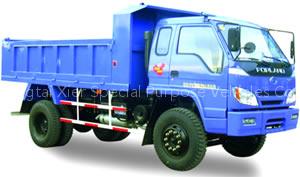

ModelZZT3101
CategorySpecial Transportation
Quick answer
ZZT3101 is a Special Transportation product. Key specs — Origin: shandong, china.
Product Description
| chassis | model | BJ3103DDPFA | |
| category | Ⅱ | ||
| manufacturer | |||
| axle | 2 | ||
| wheel base（mm) | 3700 | ||
| wheel track（front/rear mm） | 1730/1721 | ||
| tire size | 9.00-20,8.25-20 | ||
| tire | 6 | ||
| engine | model | YC4D130-20 | |
| manufacturer | |||
| delivery capacity（ml） | 4214 | ||
| fuel | diesel fuel | ||
| rated power（Kw) | 96 | ||
| emission standard | GB17691-2001 the second stage, GB3847-2005 | ||
| frame | front | type | steel plate spring |
| quantity | 10 | ||
| back | type | steel plate spring | |
| quantity | 12+9 | ||
| car load | dimension parameters | overall dimensions（mm) | 6720*2300*2720 |
| L*W*H | |||
| interior cargo body dimensions（mm) | 4300*2200*600 | ||
| L*W*H | |||
| cubage（m3) | 5.7 | ||
| front overhang/rear overhang(mm) | 1260/1760 | ||
| quality parameters | approach angle/departure angle(°) | 28/20 | |
| curb weight(Kg) | 5570 | ||
| rated payload(Kg) | 4010 | ||
| gross vehicle weight(Kg) | 9775 | ||
| max. speed(km/h) | 75 | ||
| Persons in cab (persons) | 3 | ||
