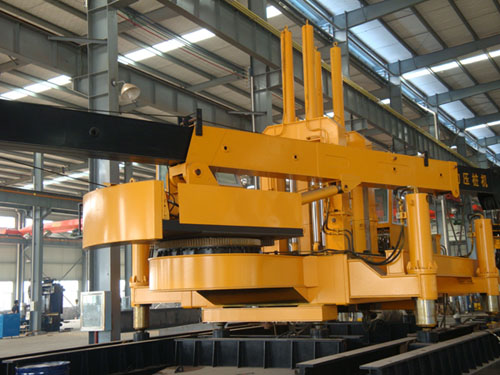

ZYC series hydraulic static pile driver

Main product: ZYC series multi-functional Hydraulic Static Pile Driver Self-developed with 5 up-to-date patents. The working principle is using hydraulic pressure to clamp precasted pile, H shape or other shape steel pile, and then driving the pile into ground by hydraulic pressing.

Suitable for piling precast round & square concrete pile, H shape steel pile and other irregular-shaped pile in clay, soft soil and sandy ground. It has characteristics of no noise, no vibration, no pollution, clear ground with high speed of pile driving, reliable construction quality and environmental protection, high efficiency, energy saving.

It is welcomed by the customers with wide market prospect.

Main Technical Parameter for ZYC240B:

Rated piling pressure(tf):240 suitable pile:300-400 300-400 Max. Piling speed:7.5 Piling stroke:1.8 Max. Longitudinal pace:3.3 Max. Transverse pace:0.6 Max. Rise stroke:1.0 Rated hydraulic system pressure:23(20) Hydraulic Pump:2*63 + 1*80 Motor power:2*22 + 1*30 Max.

Crane lifting weight:12t Hanging pile length:14m Minimum side piling space(mm):1200 Minimum corner piling space(mm):2400 Intensity of pressure:9.9/10.1 Total weight:240t

After-sales Service and Warranty for Hydraulic static pile driver:

Sellers will assign qualified technician to instruct the buyers for installation and trial operation of the equipment. And also will train the buyers operators.

Warranty time: 12 month from the date of the pile driver leaving factory.

We are looking forward to hearing from you.
