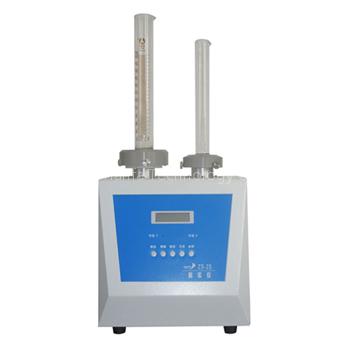

ZS-2E Tap Density tester

ZS-2E Tap Density tester is designed for powder or granule tapping or bulk density tests in compliance with USP, BP, and EP standards.

The ZS-2E Tap Density tester is used to determine physical product characteristics such as particle size, size distribution, and shape. The results are used to improve the design quality of product during R & D as well as conformity of the product in quality assurance and quality control phases.

Features

1. According with the requirements of both USP Method 1 and Method II
2. The experiment of two methods can be completed , the experimental method can be instructed by LCD
3. Sample was done in the upper and lower vibration while rotating so as to ensure even vibration
4. SCM control, keystoke input and with shortcut keys, easy to operate
5. LCD display, It’s simple and intuitive

Specification

1. Cylinder position : 2 ( USP Method I & USP Method II)
2. Size of Cylinders : 100ml, 1mL minimum divided; 130 ± 16 gram

250ml, 2mL minimum divided; 220 ± 44 gram

1. Vibration Velocity: USP Method I : 300±1 beat/min USP Method II: 250±1 beat/min
2. Vibration Height: USP Method I : 14± 2 mm USP Method II : 3 ± 0.3 mm
3. Cylinder Spin: 2~15 rpm
4. Counting Range: 0 ~ 99999
5. Counting Accuracy: Set Value ± 1
6. Preset Counts: 500, 750, 1250, 1500, 1750, 2000.
7. Display: LCD
8. Voltage: (AC220 ± 10%) V / (50 ± 2%)Hz

(AC110 ± 10%) V / (60 ± 2%)Hz

9. Size: 300 mm ×250 mm ×400 mm
