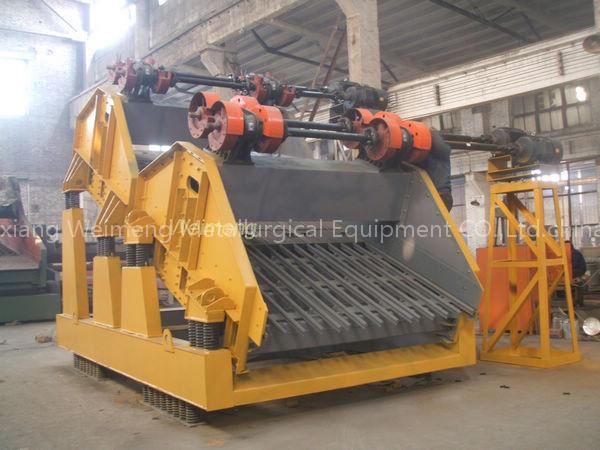

Name: ZSG series high efficiency vibrating screen
SKU: ZSG

1. Brief Introduction

1) ZSG series Mining vibrating screen consists of two vibration motors, screen frame, screen cloth, vibration damper and seat frame. It is driven to rotate synchronously in different directions by two same vibrating motors, which makes the screen body move on periodical and to-and-fro linear trajectory to achieve screen classification.

2) Widely used in mine, metallurgy, coal, power, building materials, refractory industries, etc, suitable for classification and high-energy screening of granular stuff or material.

2. Working principle of vibrating screen

SG series high efficiency heavy screen can make the screen body periodically to-and-fro vibrate along the direction of vibrating power and make material parabola move along line direction by the vibrating motor.

The screen machine consists of vibrating motor, screen frame, screen mesher and vibration isolating equipment and base frame. The side board of screen is made of high quality steel palte. High intensity bolts or rivet are used to connect side board and beam , exciting machine base. The screen machine has the advantage such as good structure and tightness.

Specifications as following:

Type	mesh (mm)	operative capacity(t/h)	vibration motor	Voltage(V)	Power(KW)	Frequency(Hz)	double amplitudes(mm)	Area of screen decks(square metres)
ZSGB-0198	no more than 250	10-100	YZO-20-6	380	2.0*2	16	6-8	1.62
ZSGB-1020	no more than 250	10-180	YZO-20-6	380	2.0*2	16	6-8	2.0
ZSGB-1224	no more than 250	10-200	YZO-30-6	380	2.5*2	16	6-8	2.88
ZSGB-1030	no more than 250	15-250	YZO-30-6	380	2.5*2	16	6-8	3.0
ZSGB-1530	no more than 250	20-350	YZO-50-6	380	3.7*2	16	6-8	4.5
ZSGB-1540	no more than 250	30-500	YZO-75-6	380	5.5*2	16	6-8	6.0
ZSG2B-1020	no more than 250	10-180	YZO-20-6	380	2.0*2	16	6-8	2.0
ZSG2B-1224	no more than 250	10-200	YZO-30-6	380	2.5*2	16	6-8	2.88
ZSG2B-1030	no more than 250	15-250	YZO-50-6	380	3.7*2	16	6-8	3.0
ZSG2B-1530	no more than 250	20-350	YZO-50-6	380	3.7*2	16	6-8	4.5

Customized specifications are available.
