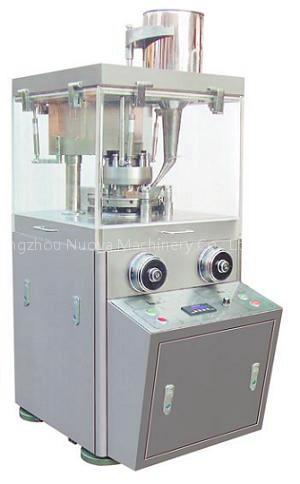

ZPW9 Rotary tablet press

Product Detail:ZPW9 Rotary tablet press is a new generation product by our factory, and this machine is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets It is mafnly used in pharmaceutical industry and also the chemical ,food,electronic industries.

Characteristics: The machine is fully enclosed. The material of the cover is stainless steel. Meeting G.M.P standard. It has transparent windows so that press condition can be observed clearly and the window can be opened. Cleaning and maintenance is easier. This machine has big compression.

And this machine can produce irregular tablets,ring shape tablets and plain tablets. It is especially suitable to use in various and small-batch production. Electromechanically integrated of the control unit and the adjusmlent unit are on one side of the machine,and easier for operating.

An overloading protection unit is included in the system to avoid the damage of the machine. ZP9 equipped with oil-soak lubrication driving system of this machine,and under the air-tightly. So that prevent cross conta-minatien and extending the working life of the machine.Main Technical Specification: Dies 9 sets

Maximum compression 60KN

tablet 13mm

Max.Depth of fill 15mm

Max.Thickness Of tablet 6mm

Turret Speed 35r/min

Production capacity 6400-19000pc/h

Motor 1.1kw 910r/min 380/50v

Overall Size 794*699*1132mm

Net weight 600kg
