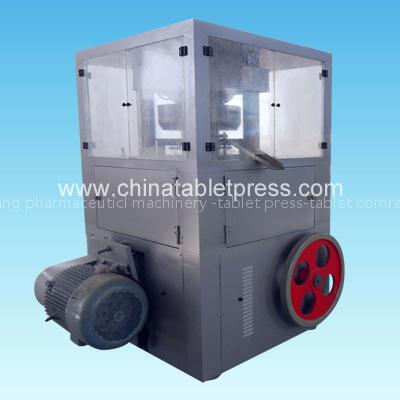

ZP80-9 large rotary tablet press-chinatabletpress

ZP80-9 large-scale rotary tablet press machine has been successfully manufactured 3 sets in the world and still has 5 sets being prepared.

They are used by the world's largest amino acid production facility, which greatly increases the disinfectant tablets (blocks) production.ZP80-9 large-scale tablet press machine, is a double-press automatic rotary continual piece of machinery.

It is able to press various granular materials into a variety of film types, and widely used in chemical, electronics and other industrial sectors.We can manufacture the tablet press machine as you request.Dies 9 sets

Max pressure 800 Kn

Dia of Tablet 40 --80 mm

Depth of Fill 52 mm

Thickness of Tablet 15 --25 mm

Turret Speed 1--9 r/min

Production Capacity 3000 --4000 pcs/h

motor 30 kw 980 r/min 380 v / 50 hz

Overall Size 1430×1280×2120 mm

Net Weight 6000kg
