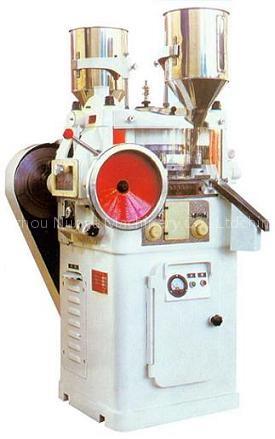

ZP33 Rotary Tablet Press
Specifications
- Brand
- NOAH
- Origin
- China (Mainland)
ZP33 Rotary Tablet Press is a Agriculture product. Key specs — Brand: NOAH; Origin: China (Mainland).
Product Description
This ZP33 Rotary Tablet Press is designed for pressing round tablets from various kinds of granularmaterials. It is primary machine to fit batch production of tablets. During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adiusted. The mechanical buffer unit will prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused. This machine has won the fine Qulity Product Prize awarded by China National Medical Management Bureau.
Main Technical Data:
ITEM | TYPE | ||
ZP29 | ZP31 | ZP33 | |
Dies | 29sets | 31sets | 33sets |
Max.Pressure | 60KN | 50KN | 40KN |
of Tablet | Rotundity20mm | Rotundity16mm | 12mm |
Max.Depth of Fill | 15mm | 15mm | 15mm |
Max.Thickness of Tablet | 6mm | 6mm | 6mm |
Turret Speed | 11-28 r/min | 11-28 r/min | 11-28 r/min |
Production Capacity | 43000-90000 pc/h | 43000-100000 pc/h | 43000-110000 pc/h |
Motor | 2.2kw, 380V,50Hz | ||
Overall Size | 930*900*1600mm | ||
Net Weight | 850kg | ||
