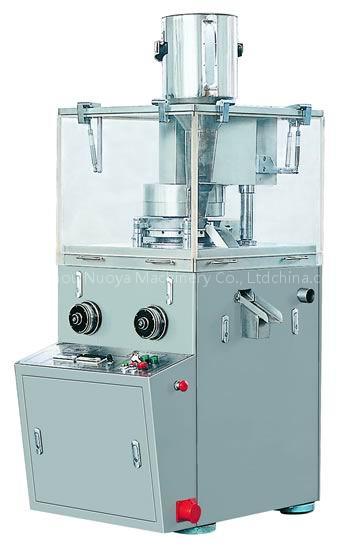

ZP17D Rotary Tablet Press

Product Detail:This ZP17D Rotary Tablet Press is a single-press type, continous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metalluraical industries.

Characteristics: outside part of the machine is fully-enclosed, and it is made of stainless steel, meeting the G. M. P requirement. has transparent windows so that press condition can be observed clearly and the windows can be opened.

Cleaning and maintenance is easier. machine can press not only round bablets but also different geometrical shape tablets, double-layered and annular tablets, the tablets may have the impressed letters on both sides. the controller and devices are located in one side of the machine, so that it can be easier to operate.

5.A overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload coours. machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, prevent cross poliution.Main techinal Data: Dies 17sets

Max.Pressure 60KN

of Tablet 20mm

Max.Depth of Fill 15mm

Max.Thickness of Tablet 6mm

Turret Speed 37 r/min

Max.Production Capacity 40000 pc/h

Motor 2.2kw 940 r/min 380/50 V/Hz

Overall Size 615*890*1415mm

Net Weight 1000kg
