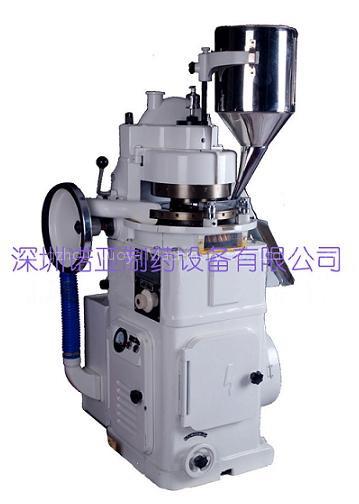

ZP15,17,19 Rotary Tablet Press

Product Detail:
This ZP15,17,19 Rotary Tablet Press is designed for pressing round tablets from various kinds of granularmaterials. It is primary machine to fit batch production of tablets. During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adiusted. The mechanical buffer unit will prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused. This machine has won the fine Qulity Product Prize awarded by China National Medical Management Bureau.

Main Technical Data:

ITEM	TYPE
	ZP19	ZP17	ZP15
Dies	19sets	17sets	15sets
Max.Pressure	40KN	40KN	50KN
of Tablet	12mm	16mm	22mm
Max.Depth of Fill	15mm	15mm	20mm
Max.Thickness of Tablet	6mm	6mm	9mm
Turret Speed	20-40 r/min
Production Capacity	22800-45600 pc/h 20400-40800 pc/h
Motor	2.2kw 960 r/min 380/50 V/Hz
Overall Size	880*750*1600mm
Net Weight	560kg
