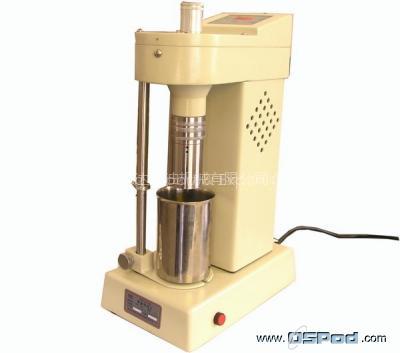

ZNN-D12 Rotational viscometer

ZNN-D12 ,12 -speed rotational viscosimeter is mainly used for the fast viscosity determinationin of drilling fluid, you can draw flow curev according to the multi-spot testing data to confirm the flow pattern of the tested fluid, it is maily for viscosity determination of non-newtonian fluids.

Major technique parameter:

1, power : 220 V (more or less5% ) 50Hz

2, electric machine power: 7.5W/15W

3, electric machine rotational speed: 750/1500r/min

5, speed: 0.9. 1.8. 3. 6. 30 60. 90. 100. 180. 200. 300. 600. r/min

6, measuring accuracy:

above 25mPa · s :more or less 4%(Newtoniafluid)

1~25mPa · s : more or less 1 mPa · s (Newtonian fluid)

7, range of viscosity : for Newtonian fluid 0~300MPa · s ,for non-Newtonian fluid: 0~150Mpa · s
