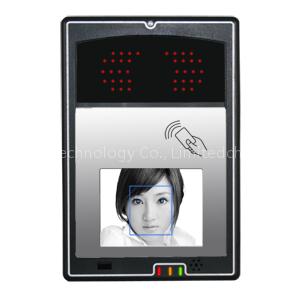

ZKS-F20 is a Time Recording product. Key specs — Brand: ZKS; Origin: China.
Product Description
Parameters Processor: TI DM6446 CPU 594 MHz Storage: SD card 2G (standard), 8G, 16G, 32G available Network interface: Ethernet 100M base-T Serial Interface: RS485 User
Capacity: 800 users by 1:N, every user can register 10 different faces; Unlimited user by 1:1 Camera sensor
Type: CCD Camera resolution: 640*480 pixels Card reader: Proximity card reader module embedded Display: 3.0 TFT touch color LCD Power Supply: DC12V Current: 800mA Power Consumption: 9.6W Communications: TCP/IP and USB downloading Show: Time, ID number, Name, Picture Language: English and other customized languages Time & Attendance mode: Face, password, card, face + password and face + card
Size: 110mm (W) x 145mm (H) x 65mm (D)
Weight: 3.5kg Valid range of user's height: 1.45 to 1.95m Installation: 1.1 to 1.25m from the ground (adjustable based on user's average height) Valid distance between terminal and user: 0.3 to 0.8m Warranty of period: 12 months
Applications: Office / hotel / hospital / bank / prison / police station etc Access Controller Specification Communication Interface: RS485, WEIGAND 26, WEIGAND 34 Power Supply: DC12V Current: 300mA Power Consumption: 3.6W Operation
Temperature: -20℃~60℃
