Listing ID#10013216
ModelSZ2400-16-29
CategoryTelecommunications
Quick answer

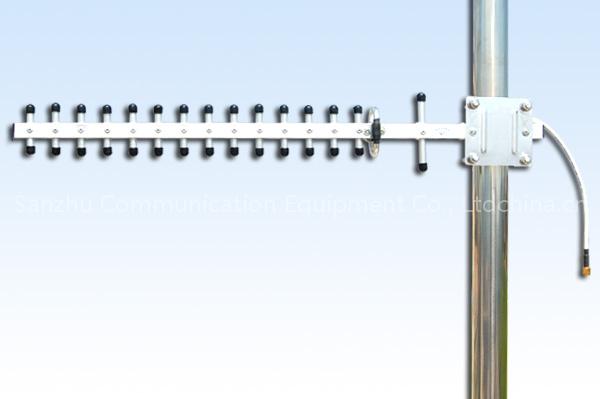

Yagi antenna is a Telecommunications product. Key specs — Brand: sztx; Origin: China.
Product Description
ELECTRICAL DATA
Frequency Range (MHz):2400-2500 MHz
Gain (dBi): 16dBi
Horizontal Beamwidth (Deg.):29
Vertical Beamwidth (Deg.):25
Front-to-back-Ratio (dB): >16dB
Polarization: Horizontal or Vertical
VSWR: less than 1.5
Nominal Impedance: 50
Connector: N or user-specified
Max Input Power (W): 100W
Lightning Protection:DC Ground
Bandwidth: 100
