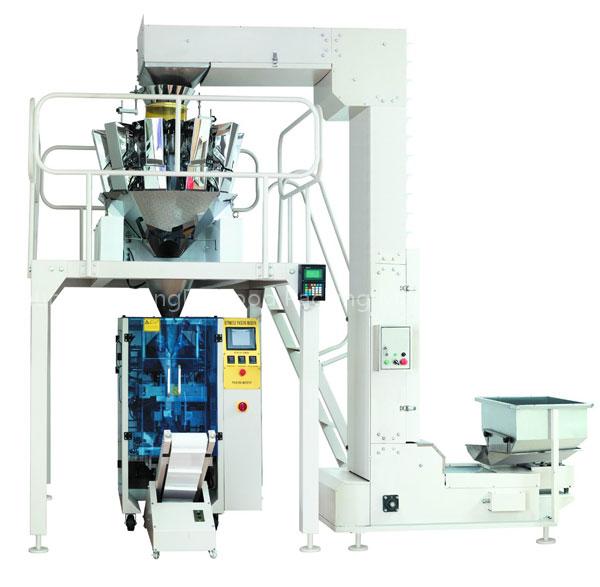

YTD-Z food automatic packing packaging machine system
Specifications
- Brand
- YTD
- Origin
- China
- Price Term
- FOB
Quick answer
YTD-Z food automatic packing packaging machine system is a Other Food Processing Machinery product. Key specs — Brand: YTD; Origin: China; Price Term: FOB.
Product Description
This set of machine is consist of Z-shaped bucket conveyor,vibrating conveyor,working platform,plastic packaging machine and finished conveyor together. widely usd in confectionary,backery,medicine,such industry.Product is characterized by low noise,durable use,resistance heat and cold,large production capacity and popular among users.
whole set including:
*vibration feeder
*Z shaped conveyor
*working platform
*multihead weigher
*vertical form fill seal machine
*output conveyor
*rotary collection table
vertical packing machine
| machine type | YTD-420 |
| gas consumption | 0.2m3/min ,0.6Mpa |
| film width | Max.400mm |
| film thickness | 0.04-0.08mm |
| bag length | 70-240mm |
| bag width | 70-190mm |
| Coil maximum overall diameter | Max.300mm |
| packing speed | 5-60bags/min |
| power | 220V,50/60Hz,2.2KVA |
| machine size | 1120mmL*930mmW* 1400mmH |
Z-shaped bucket conveyor
| machine | bucket elevator |
| Hopper | 1.8 L volume,food-grade polypropylene (PP) |
| Material | stainless steel/carbon steel |
| Conveying capacity | 3-7m3 / h |
| Three-phase AC voltage & frequency | 220V/380V,50Hz |
| Power | 0.75 KW |
| N.W. | 550KG |
| Height | 3940mm |
| Packing size | 2050mm(L)*1350mm (W)*980mm (H) |
working platform
| machine type | YTD - P2000 |
| feature | Stout railing and thick antiskid pattern aluminum |
| dimension | 3165.5mmL*2100mmW*2800mmH |
| material | carbon steel/stainless steel |
