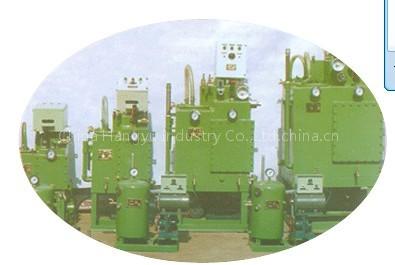

YSF-Q series Marine oily water separator

YSF-Q series Marine oily water separator is according to the requirement of GB/T4795-1999 and IMO Marine Environment Protection Committee. The product can also be used to treat oily water in industry and its discharge standard is in compliance with the requirements of state Environment Protection Department besides of separating the bilge oily water on board.

TypeParameter YSF-Q-0.05 YSF-Q-0.1 YSF-Q-0.25 YSF-Q-0.5 YSF-Q-1.0 YSF-Q-2.0 Capacity(m3/h) 0.05 0.1 0.25 0.5 1.0 2.0 Discharge Standard (ppm) ≤ 10mg/L Working pressure (Mpa) ≤ 0.2 Heating Method Electric Heating(AC 380V) Discharge Method Automatic or Manual Pump Manual pump Electric Piston Pump (CDZ type) Motor power(kw) / 0.25 0.25 0.37 0.55 1.10 Weight(kg) 25 75 123 195 400 600
