YG-ZX45n Solar DC Home Power System is a Solar Panels product. Key specs — Origin: China.
Product Description

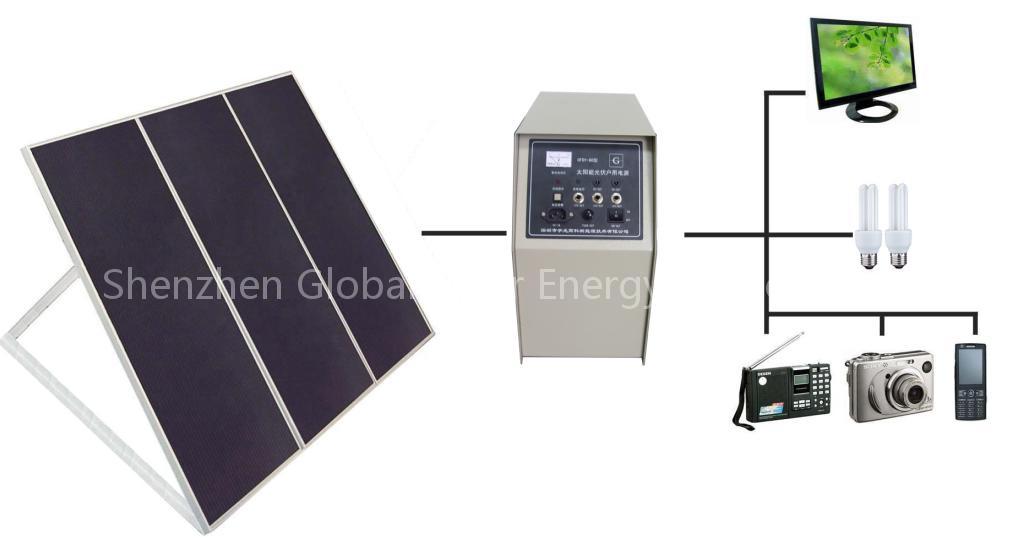

Constructed by amorphous silicon solar module,bracket,power control unit and loading unit (DC energy saving lamp,LCD Tv,small power electric equipment etc).It can provide eletricity for lighting ,watching DC LCD TV,listening radio&audio system,charging mobile,MP3,camera is ideal for rural remote area where no electricity or unreliable electricity supply.
System Configuration:
1. Solar module: 3 pcs solar panels,output power 45w,output voltage>17v,output current>2.5A
Dimension of each solar panel: 962x390x22 mm
2.solar module bracket : 1 set
3.Power control unit :1 set,including 12v/45Ah battery,charge-discharge controller,input and output ports.
4. DC energy saving lamp: 2pcs of 7w/12V .
System Usage:
solar modules should be placed outdoor where no sun light is blocked ,it can provide electricity for DC energy saving lamps,also DC LCD TV,radio and mini-audio system,charging mobile,Mp3 and camera etc.
