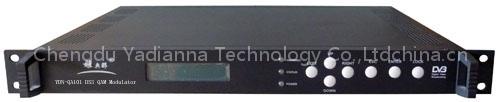

YDN-QA103 QPSK turn QAM Modulator

YDN-QA103 is a headend equipment with the professional broadcasting quality according to DVB standard . The main function is to directly convert signals which could be QPSK modulated from satellite to QAM signals, and then transmit via HFC or MMDS network. It doesn't need decompression, compress, QAM modulation but directly modulate data stream demodulated to QAM signal sending to HFC or MMDS network. Therefore, it realizes SDTV/HDTV service, providing many digital TV programs and data broadcasting programs with low-cost in SMATV.

Features

â—†Comply with DVB standard, DVB/MPEG-2 compatible

â—†SCPC/MCPC compatible, receiving unencrypted digital satellite programs at home and abroad

â—†Low gateway Integration tuner, reliable and good performance

â—†188/204 packet auto identify

â—†Work of mode QPSK,16QAM,32QAM,64QAM,128QAM,256QAM

â—†Output data bit rate:2~56Mbps

â—†Output signal BW :1.15~8.05MHz(Fall 0.15)

â—†Output data symbol ratio:1~7Mbaud/s

â—†YDN-QP101, 35.25/36/36.15/44MHz

â—†YDN-QA101, 36 MHz,36+6(8)MHz

â—†IF output level:98 1dBuV

â—†RF frequency range:48~860MHz(subsection offer)

â—†RF output level:100dBuV~115dBuV(stepping optional)

â—†YDN-QA101 double input and double RF output

â—†QPSK loop output interface

â—†Error alarming

â—†RF testing output interface

â—†LCD display

â—†Network controlled interface(NMS optional)

â—†Power off memory
